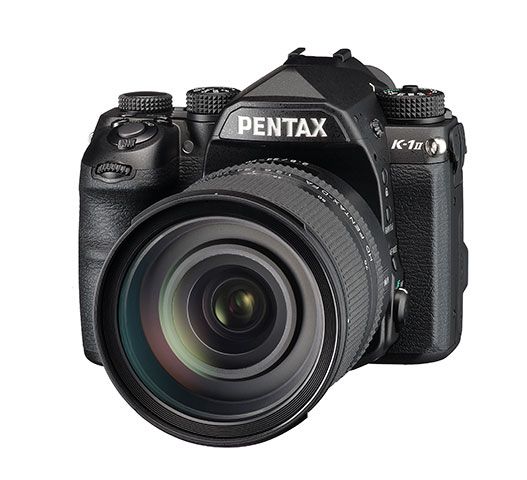

TTL autofocus, auto-exposure SLR digital-still camera

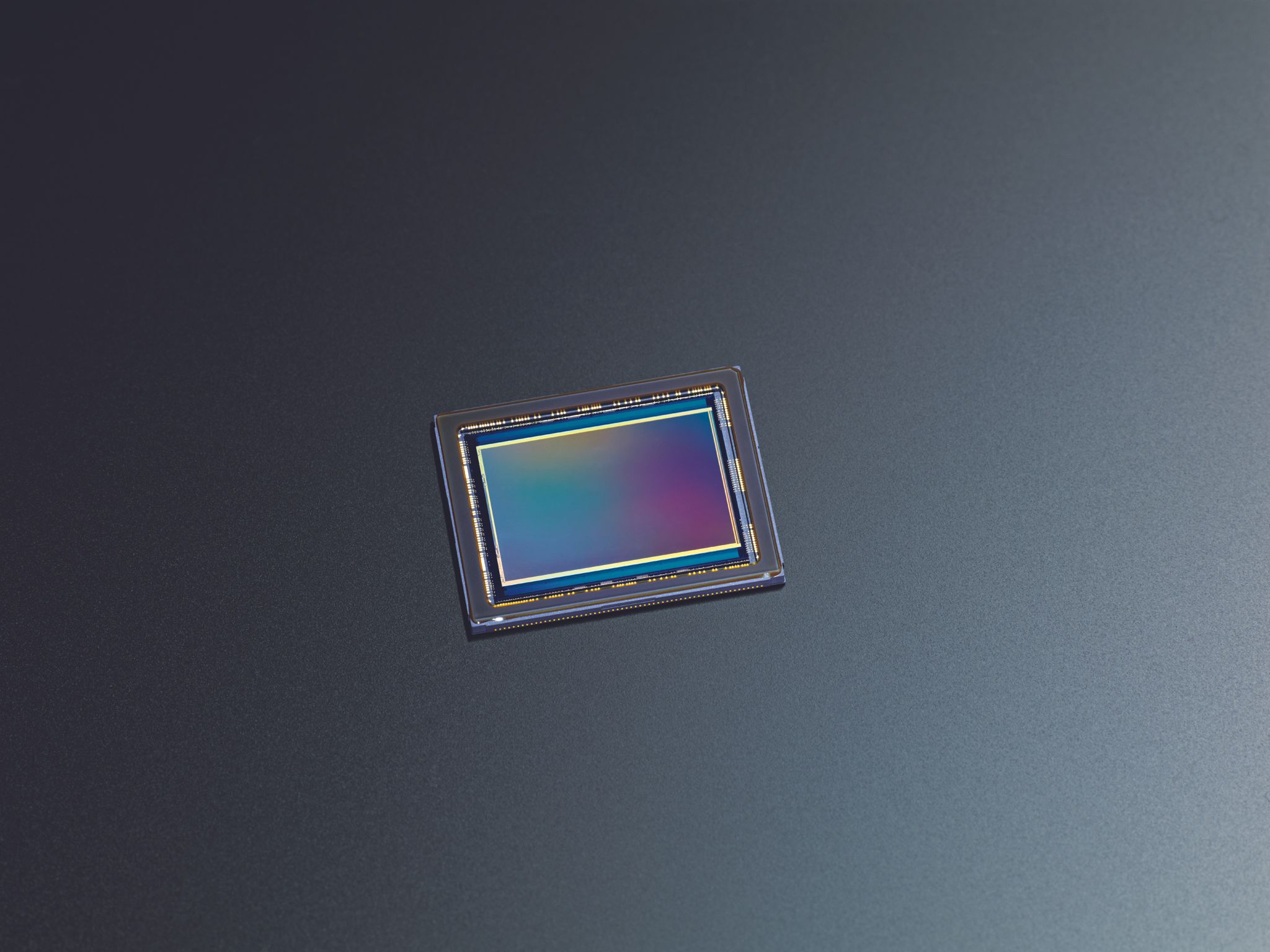

CMOS-Sensor, Primary color filter

AA Filter Simulator: Moiré reduction using SR unit. OFF/Type1/Type2/Bracket (2 or 3 images)

35.9 x 24.0 mm

Approx. 36.77 megapixels

Approx. 36.40 megapixels

[35mm Full Frame]

JPEG: L(36M: 7360x4912) M(22M:5760x3840) S(12M:4224x2816) XS(2M:1920x1280),

RAW: (36M:7360x4912)

[APS-C size]

JPEG: L(15M: 4800x3200) M(12M:4224x2816) S(8M:3456x2304) XS(2M:1920x1280),

RAW: (15M:4800x3200)

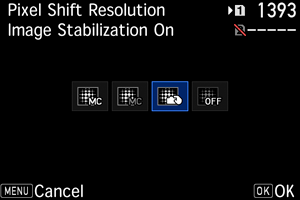

Pixel Shift Resolution: High resolution Pictures based on the use of each Pixel for all RGB-Color Information - Now also for moving subjects.

Full HD (1920x1080, 60i/50i/30p/25p/24p), HD (1280x720, 60p/50p)

14bit in RAW Mode PEF and DNG

ISO AUTO/100 to 819200 (EV steps can be set to 1EV, 1/2EV or 1/3EV)

5 Axis Sensor Shift Shake Reduction (SR II)

Image sensor cleaning using ultrasonic vibrations «DR II»

Sensor-shift shake reduction (SR II: Shake Reduction) (5axis)

Pixel Shift Resolution II: High resolution Pictures based on the use of each Pixel for all RGB-ColorInformation.
Traditional Mode with the use of Electronic Shutter, Tripod is recomended, Handheld Mode with 4 single pictures

Type: Method using a combination of the CMOS image sensor and the light source detection sensor

AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image

Fine Adjustment: Adjustable ±7 steps on A-B axis or G-M axis

KAF4, KAF3, KAF2 (power zoom compatible), KAF, KA mount lens

KAF4, KAF3, KAF2 (power zoom compatible), KAF, KA mount lens

Type TTL: phase-matching autofocus

Focus Sensor: SAFOX 12, 33 point (25 cross type focus points in the center)

Brightness Range: EV-3 to 18 (ISO 100 / at normal temperature)

AF mode: Single AF (AF.S), Continuous AF (AF.C)

AF Point Selection: Spot, Select, Expanded Area (S, M, L), Zone select, Auto (33 AF points)

Dedicated LED AF assist light

Pentaprism Finder

Approx. 100%

Approx. 0.70x (50mm F1.4 at infinity)

Fixed Natural-Bright-Matte III focusing screen

Viewfinder Overlay: AF Points, Grid Display, Electronic Level, AF Frame, Spot Metering Frame, Crop

Eye-Relief Length: Approx. 20.6mm (from the view window), Approx 21.7mm (from the center of lens)

Approx. -3.5m to + 1.2m-1

Wide viewing angle TFT color LCD, Air-gapless glass, Flexible-tilt.

Size: 3.2 inch (aspect ratio 3:2)

Approx. 1.037K dots

Adjustment: Brightness, Saturation and Colors adjustable

Outdoor View Setting: Adjustable ±2 step

Type: TTL method using image sensor

Focusing Mechanism: Contrast detection (Face detection, Tracking, Multiple AF points, Select, Spot)

Focus Peaking: ON/OFF

Display: Field of View approx. 100%, Magnified view (up to 16x),

Grid Display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2,

Grid Color: Black/White ), Histogram, Bright area warning, Composition Adjustment

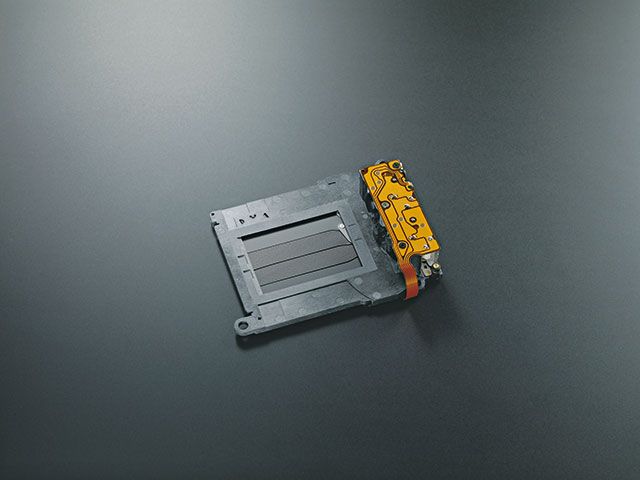

Electronically controlled vertical-run focal plane shutter
* Electronic shutter when using Pixel Shift Resolution

1/8000 to 30 sec., Manual: 1/8000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb

TTL open aperture metering using 86K pixel RGB sensor, Multi-segment, center-weighted and spot metering

Scene Analyze Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3, USER4, USER5

EV-3 to 20 (ISO100 at 50mm F1.4)

Button type (timer type: two times the meter operating time set in Custom Setting);

Continuous as long as the shutter button is halfway pressed

±5EV (1/2EV steps or 1/3EV steps can be selected)

Flash Control: Contrast-control-sync and High-speed sync requires 2 or more dedicated external flash guns

Sync Speed: 1/200 sec.

-2.0 to + 1.0EV

Drives modes

Mode Selection: Single Frame, Continuous (H, M, L), Self-timer (12s, 2s, Continuous), Remote Control (0s., 3s., Continuous), Bracketing (2, 3 or 5 frames), Mirror-up, Multi-Exposure, Interval Shooting, Interval Composite, Star Stream
* Bracketing, Interval Shooting, Interval Composite, Interval Movie Record, Multi Exposure and Star Stream are possible to use with Self-timer/Remote Control.

Continuous Shooting:
[35mm Full Frame]
Max. approx. 4.4 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 70 frames,
RAW: up to approx. 17 frames
Max. approx. 3.0 fps, JPEG L: ★★★ at Continuous M): up to approx. 100 frames,
RAW: up to approx. 20 frames
Max. approx. 0.7 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 100 frames,
RAW: up to approx. 100 frames

[APS-C size]
Max. approx. 6.4 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 100 frames,
RAW: up to approx. 50 frames
Max. approx. 3.0 fps, JPEG L: ★★★ at Continuous M): up to approx. 100 frames,
RAW: up to approx. 70 frames
Max. approx. 1.0 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 100 frames,
RAW: up to approx. 100 frames

Multi-Exposure: Composite Mode (Additive/Average/Bright), Number of Shots (2 to 2000 images)

Interval Shooting:

[Interval Shooting]
Interval: 2s. to 24h./ Standby
Interval: Min.1s. to 24h., Number of shots: 2 to 2000 images
Start Interval: Now/Self-timer/Remote Control/Set Time

[Interval Composite]
Interval: 2s. to 24h./ Standby
Interval: Min.1s. to 24h., Number of shots: 2 to 2000 images
Start Interval: Now/Self-timer/Remote Control/Set Time
Composite Mode: Additive/Average/Bright, Save Process: On/Off

Capture setting

Custom Image: Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Sharpness level: Fine Sharpness and Extra Sharpness improve sharpness and gives much better details

Cross Processing: Randum, Preset 1-3, Favorite 1-3

Digital Filter: Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Clarity: Adjustable ±4 step

HDR: Auto, HDR1, HDR2, HDR3, Advanced HDR, Exposure bracket value adjustable, Automatic composition correction function

Lens Correction: Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction

Dynamic Range compensation: Highlight Correction, Shadow Correction

Noise Reduction: Slow Shutter Speed NR, High-ISO NR

Horizon Correction: SR On: correction up to 1 degrees, SR Off: correction up to 2 degrees

Composition Adjustment: Adjustment range of ±1.5mm up, down, left or light (1mm when rotated); rotating range of 1 degree

Electronic Level: Displayed in viewfinder and LCD panel (horizontal and vertical);
displayed on LCD monitor (horizontal and vertical)

File Format: MPEG-4 AVC/H.264 (MOV)

Recorded Pixels: Full HD(1920x1080, 60i/50i/30p/25p/24p), HD (1280x720, 60p/50p)

Sound: Built-in stereo microphone, external microphone (Streo recording compatible)
Recording Sound Level adjustable, Wind Noise Reduction

Recording Time: Up to 25 minutes or 4GB; automatically stops recording if the internal temperature of the camera becomes high.

Custom Images: Aoto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Cross Processing: Randum, Preset 1-3, Favorite 1-3

Digital Filter: Extract Color, Replace color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Interval Movie Record:

[Interval Movie]
Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval: 2s. to 24h./ Standby
Interval: Min.1s. to 24h., Number of shots: 8 to 2000 images (8 to 500 images at 4K),
Start Interval: Now/Self-timer/Remote Control/Set Time

[Star Stream]
Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval: 2s. to 24h./ Standby
Interval: Min.1s. to 24h., Number of shots: 8 to 2000 images (8 to 500 images at 4K),
Start Interval: Now/Self-timer/Remote Control/Set Time,
Fade-out: Off/Low/Medium/High

Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Pasteurization, Miniature, Soft, Starburst, Fish-eye, Slim, Monochrome

Playback View:

Single frame, multi-image display (6,12, 20, 35, 80 segmentation), display magnification (up to 16, 100% display and quick magnification available), rotating, histogram (Y histogram, RGB histogram), bright rea warning, Auto Image Roation, detailed inf, Copyright Information (Photographer, Copyright holder), Folder Display, Calendar Filmstrip Display, Slide Show, GPS information (latitude, longitude, altitude, Coordinated Universal Time, Orientation)

Delete:

Delete single image, delete all, select & delete, delete folder, delete instant review image

RAW Development:

RAW file select: Select Single Image, Select Multiple Images, Select a folder

RAW Development Parameter: White Balance, Custom Image, Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space

Edit: Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available), Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy

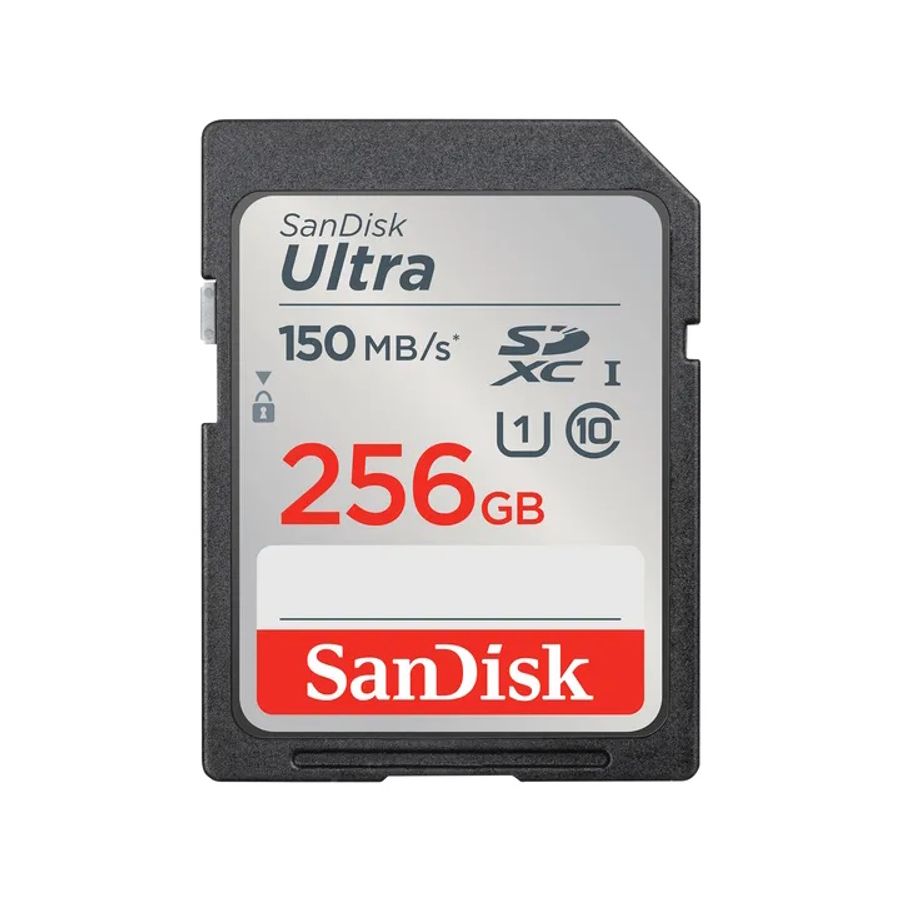

Storage Medium: SD, SDHC and SDXC Memory Card (Conforms to USH-1 standards)

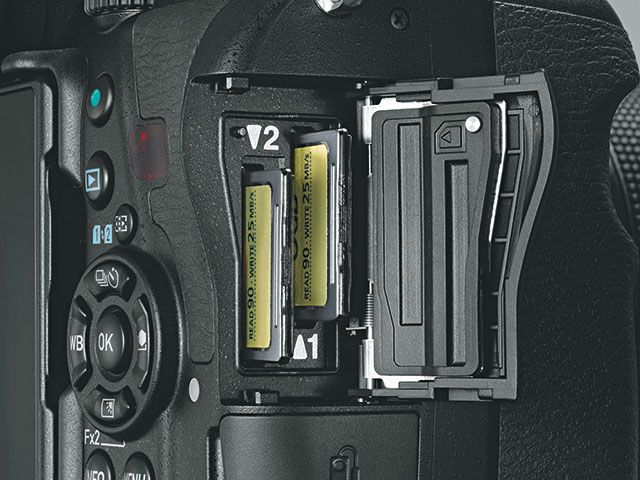

Dual SD slot: Sequential Use, Save to Both, Separate RAW/JPG, Image copy between slots possible

RAW (PEF/DNG), JPEG (Exif 2.30), DCF2.0 compliant

Quality Level RAW (14bit): PEF, DNG, JPEG:*(Best),**(Better),***(Good), RAW + JPEG
simultaneous capturing available

Color Space: sRGB, AdobeRGB

"IMGP****" or User assingned file name

File name numbering: Sequential, Reset

GPS/Electronic Compass

GPS: GPS Logging (Logging Interval, Logging Duration, Memory Card Options), GPS Time Sync

Electronic Compass: Available

Astrotracer: Possible

Satellites: GPS, QZSS, SBAS(WAAS/ EGNOS/ GAGAN/ MSAS)

Reception Frequency: L1 1575.42MHz

Recorded Information: Latitude, Longitude, Altitude, Time (UTC), Direction

Geodesics World Geodetic System (WGS84)

GPS Logging: KML format, Logging Interval: 5/10/15/30sec. /1min., Logging Duration: 1-24hr. (Up to 9hours at Logging Interval 5sec. Up to 18hrs. at Logging Interval 10sec.)

Electronic Compass: Azimuth calculation using triaxial geomagnetic sensor and triaxial acceleration sensor, True north standard

Customization

USER Mode: Up to 5 settings can be saved

Custom Functions: 26 items

Mode Memory: 17 items

Custom Button: Fx1 Button, Fx2 Button (One Push File Format, Outdoor View Setting, Flash Mode, Pixel Shift Resolution, Shake Reduction, Horizon Correction, Electronic Level) AF Button (AF1/ AF2/ Cancel AF) Preview Dial (Optical Preview/Digital Preview)
Various settings for the action of the e-dials in each exposure mode can also be saved.

AF Customization: AF.S: Focus-priority/ Release-priority
1st Frame Action in AF.C: Release-priority/Auto/Focus-priority
Action in AF.C Continuous: Focus-priority, Auto, FPS-priority
Hold AF Status: OFF, Low, Medium, High
AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot
AF with Remote Control: Off/On

Operation Control: Type 1: E-Dial, EV Compensation, ISO, Green Button, AE Lock

Lock: Type 2: 4-way controller, AF point change button, Change AF Point, OK Button, Menu Button

Text Size: Standard, Large

World Time: World Time settings for 75 cities (28 time zones)

AF fine Adjustment: ±10 step, Uniform adjustment, Individual adjustment (up to 20 can be saved)

Illumination Settings: LCD Panel (High/Low/Off), Backside Controls (High/Low/Off), Lens Mount (On/Off), Card Slot/Connector (On/Off)

Indicator Lamps: Wi-Fi (High/Low/Off), GPS (High/Low/Off), Self-timer (On/Off), Remote Control (On/Off)

Copyright Information: Names of "Photographer" and "Copyright Holder" are embedded to the image file. Revision history can be checked using the provided software.

Operating environnement

Temperature: -10°C ~ 40°C (14°F ~104°F)
Humidity: 85% or less (no condensation)
Dust and Water protected: 87 Sealings protecting camera against Dust, Rain and Spraywater. Camera is not water protected.

English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese

IEEE 802.11b/g/n

2412MHz ~ 2462MHz (1ch ~ 11ch)

Authentication: WPA2, Encryption: AES

Connection Port: USB2.0 (micro B), external power supply terminal, external release controller terminal, X-synch socket, HDMI output terminal (Type D), stereo miscrophone input terminal, Headphone terminal

USB Connection: MSC/PTP

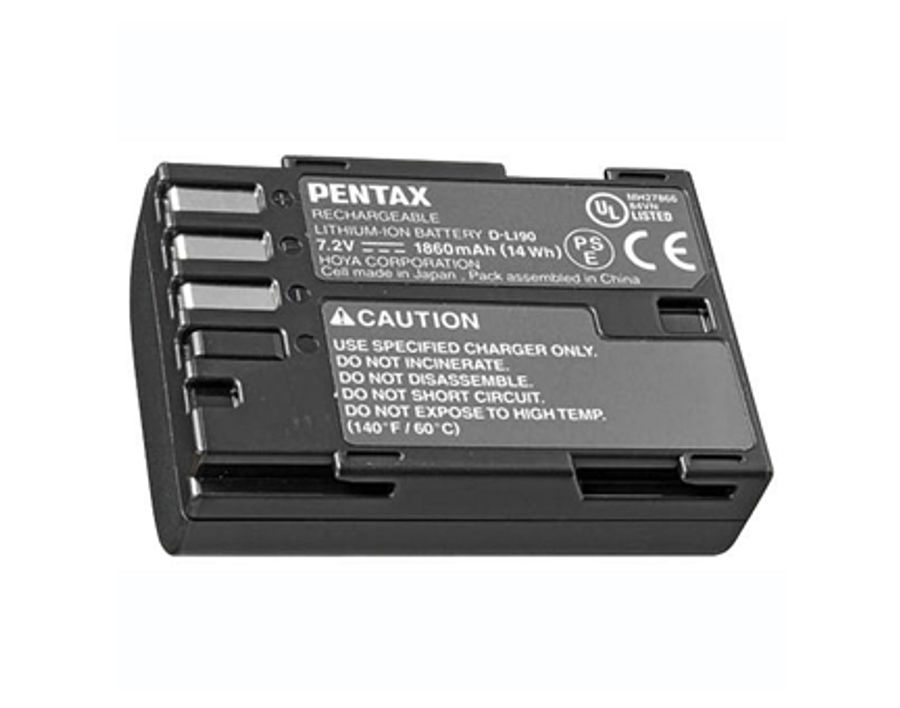

Battery Type: Rechargeable Lithium-ion Battery D-LI90

AC Adapter: AC Adapter Kit K-AC132 (Optional)

Battery Life:

Number of recordable images: 670

Playback time: Approx. 340 minutes

* With a fully-recharged Rechargeable Lithium-ion Battery. Tested in compliance with CIPA
standard. Actual results may vary depending on the shooting condition.

110mm

136.5mm

85.5mm

Approx. 1010g (Including dedicated battery and 1x SD Memory Card), Approx. 925 (body only)

Rechargeable-Ion Battery D-LI90(B) - 39830

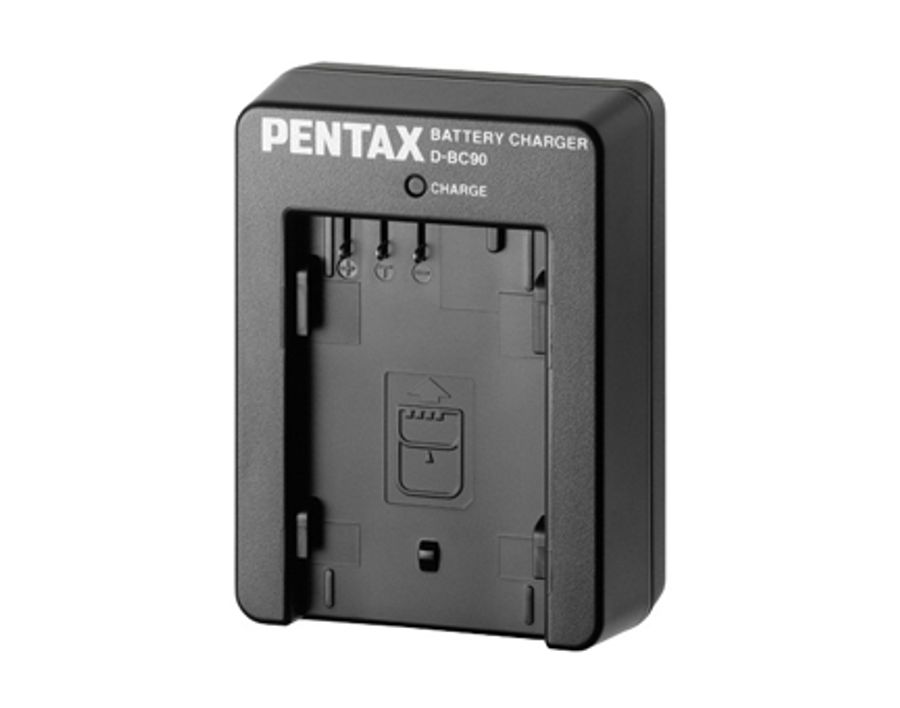

Battery Charger D-BC90 - 39832

Finder Cap for me - 31011

AC plug cord D-CO2E - 39475

PENTAX Strap O-ST162 - 38477

Eyecup FT - 30128

Hotshoe cover FK - 31040

Body mount Cap KII - 31000

Synchro Terminal 2P Cap - 31042

PENTAX K-1 Triangular Ring - 38599

PENTAX K-1 Protective Cover - 38600

Software (CD-ROM) S-SW162 - 38557

Rechargeable-Ion Battery D-LI90(B) - 39830

AC Adapter Kit K-AC167

Battery Charger Kit K-BC90E - 39834

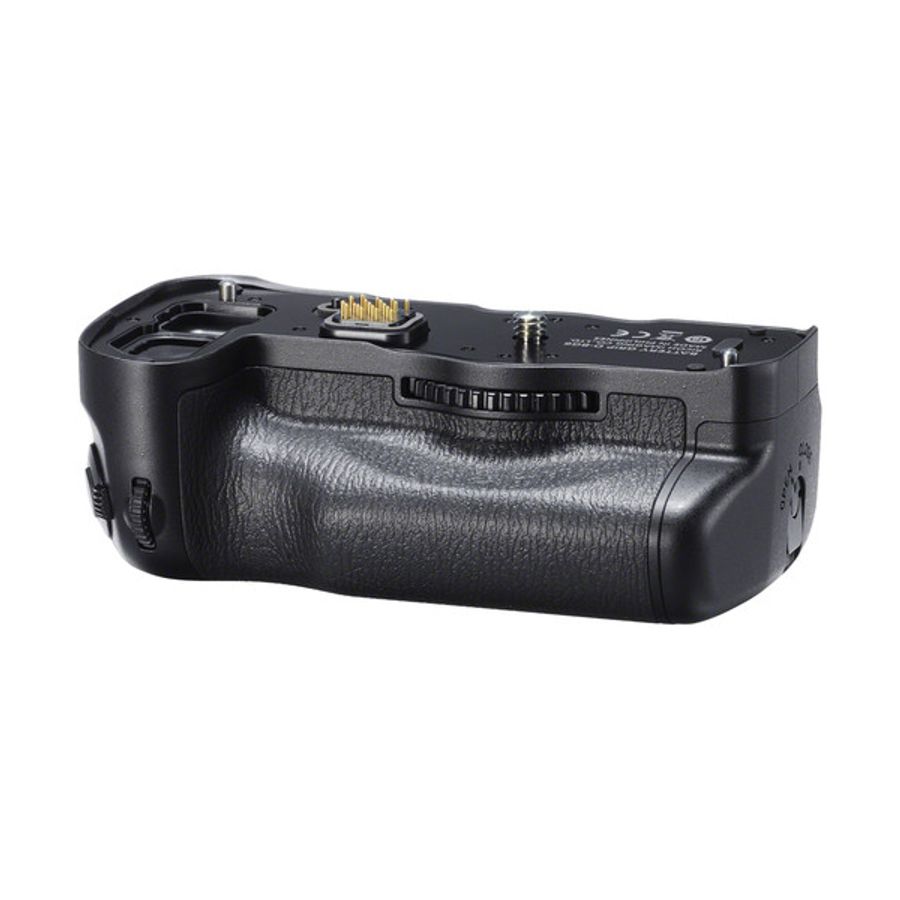

Battery Grip D-BG6 - 38607

PENTAX Remote Control O-RC1 - 39892

Cable switch CS-205 - 37248

PENTAX AF 201 FG Electro Flash W/Case - 30458

PENTAX AF 540 FGZ II W/Case - 30456

PENTAX AF 360 FGZ II W/Case - 30438

Strap O-ST1401 black - 38613

Strap O-ST1401 red - 38614
