The PENTAX K-1 Mark II:

the new standard of the 35mm full-frame K series

Rich colors and subtle shades, and a beautiful bokeh and a well-defined sense of depth. When the photographer's inspiration is truly reflected in all these elements, photographs will become more than mere records - they will evolve into truly impressive works of art.

The PENTAX K-1 Mark II has been created as the flagship model that will fulfill this goal. It features a new, advanced image-processing system to deliver the beautiful image quality which all photographers demand. It produces images that are rich in color and gradation, high in resolution, and superb in bokeh rendition.

The Pixel Shift Resolution System II - the PENTAX-original super-solution technology - now accommodates handheld photography. The AF system featuring a new algorithm assures high-precision focusing even with moving subjects.

While inheriting the PENTAX K-1's development concept, the PENTAX K-1 Mark II has advanced technologies to near perfection. When your creativity is in complete harmony with the camera, your photography will truly come alive.

NEW

Top sensitivity of ISO 819200 enhances image quality, and expands the creative boundaries of high-resolution digital SLR photography

State-of-the-art imaging processing system

Greatly improved image quality, even in high-sensitivity photography

Top sensitivity of ISO 819200

NEW

The advanced Pixel Shift Resolution System II for super-high-resolution images

A PENTAX technology to produce high-quality images beyond the power of total pixels

Advanced Pixel Shift Resolution System II

The K-1 Mark II overcomes challenging field conditions, such as poor weather, darkness and freezing temperatures

Five-axis, five-shutter-step camera shake compensation

Dependable dustproof, weather-resistant construction

The K-1 Mark II overcomes challenging field conditions, such as poor weather, darkness and freezing temperatures

Storage capacity (approx.)

<35mm full-frame>

  RAW JPEG
Recorded Pixels (7360x4912) L: 36M M: 22M S: 12M XS: 2M
(7360x4912) (5760x3840) (4224x2816) (1920x1280)
Quality Level PEF ★★★ ★★ ★★★ ★★ ★★★ ★★ ★★★ ★★
8GB 101 351 676 1164 572 1096 1874 1054 2013 3364 4723 8469 12927

[shots]

<APS-C size>

  RAW JPEG
Recorded Pixels (4800x3200) L: 15M M: 12M S: 8M XS: 2M
(4800x3200) (4224x2816) (3456x2304) (1920x1280)
Quality Level PEF ★★★ ★★ ★★★ ★★ ★★★ ★★ ★★★ ★★
8GB 215 821 1564 2669 1054 2013 3364 1564 2959 4912 4723 8469 12927

[shots]

<1:1>

  RAW JPEG
Recorded Pixels (4912x4912) L: 24M M: 14M S: 6M XS: 2M
(4912x4912) (3744x3744) (2592x2592) (1440x1440)
Quality Level PEF ★★★ ★★ ★★★ ★★ ★★★ ★★ ★★★ ★★
8GB 101 525 1006 1717 899 1717 2889 1846 3459 5712 5582 9824 15351

[shots]

Movie recording time (approx.)

Recorded Pixels Full HD
(1920×1080)
HD
(1280×720)
60i 50i 30p 25p 24p 60p 50p
8GB 00:32′15″ 00:38′21″ 00:32′15″ 00:38′21″ 00:39′51″ 00:32′15″ 00:38′21″

[Hours : Minutes' Seconds'']

* You can record up to 25 min. or 4GB movie for one shooting.
* ‘Testing your camera’ refers to confirmed operation by RICOH IMAGING, and is intended for customer convenience but is not a guarantee by RICOH IMAGING to the customer.
* Use a high-speed SD memory card when recording movies. If the writing speed cannot keep up with the recording speed, writing may be interrupted during recording.

Top sensitivity of ISO 819200 enhances image quality, and expands the creative boundaries of high-resolution digital SLR photography

State-of-the-art imaging processing system

Greatly improved image quality, even in high-sensitivity photography NEW

To reproduce lively colors and rich gradations close to memory colors in all sensitivity ranges, the PENTAX K-1 Mark II newly incorporates an original accelerator unit, which efficiently processes image signals output by the image sensor before sending them to the imaging engine. This process upgrades both image resolution and color reproduction in a high-sensitivity range, while drastically reducing noise compared to the PENTAX K-1. It also helps bring the camera's top sensitivity up to ISO 819200 (at standard output sensitivity) for high-grade, super-high-sensitivity photography.

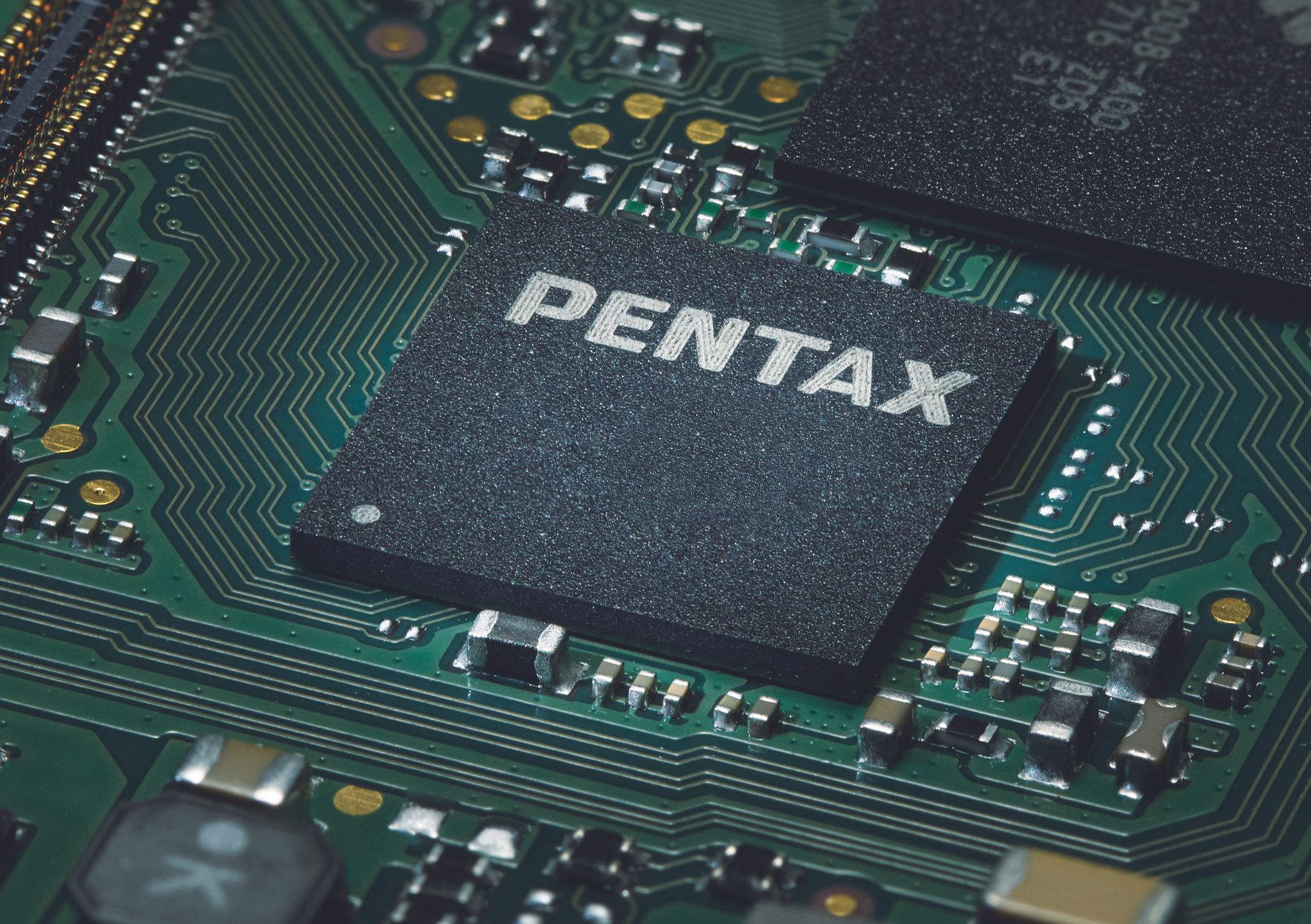

PRIME IV

High-performance imaging engine to assure high-resolution image reproduction


The PENTAX K-1 Mark II's PRIME IV imaging engine is the culmination of PENTAX's high-speed, high-quality image processing technologies. In addition to highly efficient noise processing, it features Fine Sharpness and Extra Sharpness functions to process the subject's outlines more naturally and more delicately, and the PENTAX Real-time Scene Analysis System, which has adopted a breakthrough deep learning technology. It also effectively compensates for the distortion, vignetting and chromatic aberration caused by specific lens properties, while efficiently correcting the fringe effect.*

    * Available in combination with D FA-, DA-, DA L- and FA-series lenses. Some of these lenses may not be compatible with these functions.

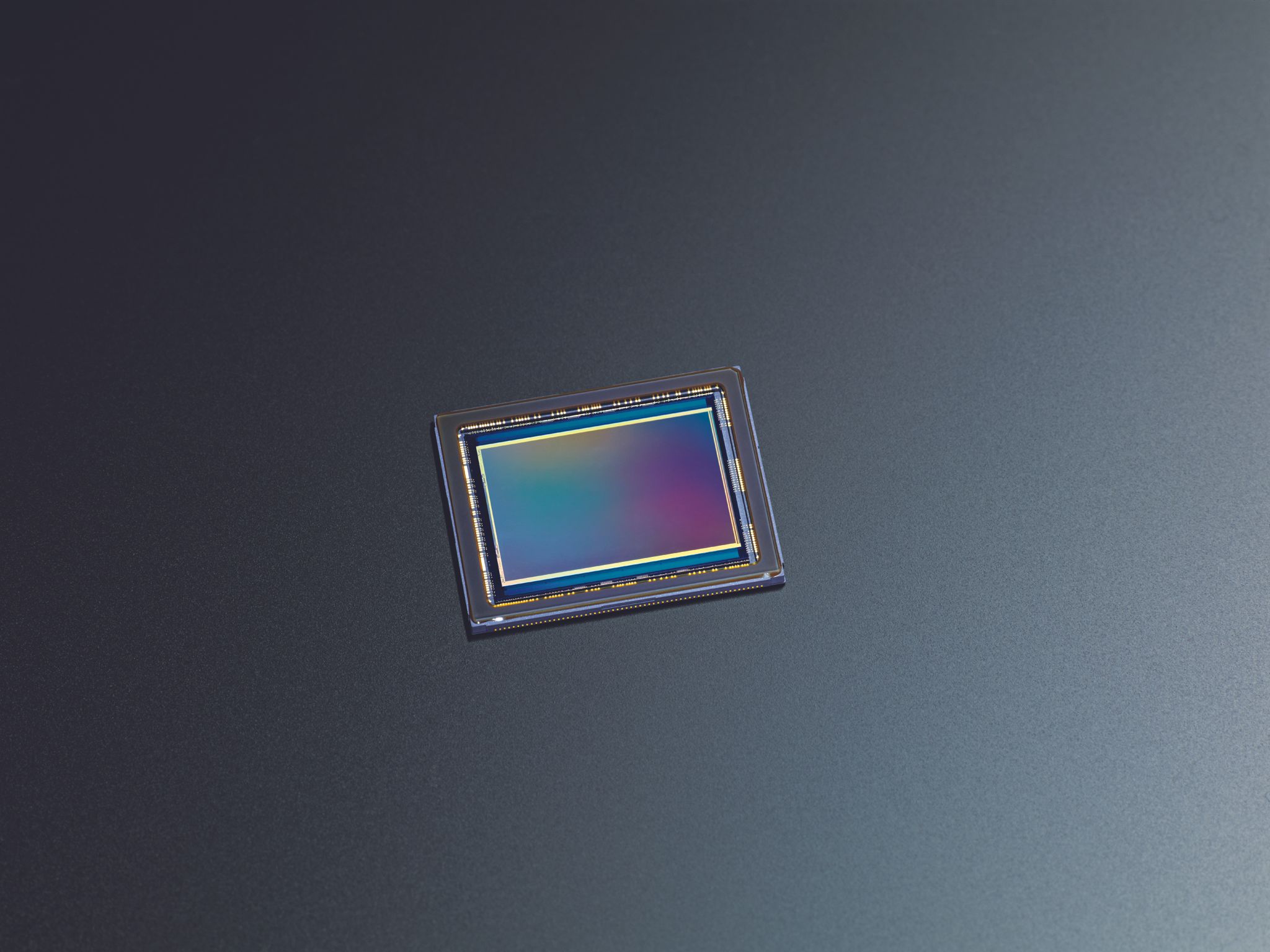

35mm full-frame image sensor

A large, high-performance image sensor to capture all lighting data


The PENTAX K-1 Mark II's 35mm full-frame image sensor features a large imaging area and a wide pixel pitch to deliver lively, true-to-life images with rich gradation. It also assures superb noise reduction performance to capture the subject truthfully with fine details and subtle shades. Its shallow depth of field allows you to control the sense of depth and bokeh (defocus) effect at will.

Approximately 36.4 effective megapixels

AA-filter-free design to optimize resolving power


The PENTAX K-1 Mark II features an AA (anti-aliasing)-filter-free design to optimize image resolving power. This design produces true-to-life images by faithfully depicting the fine details of the subject. It retains excellent resolution, even when the image is cropped during shooting, or the captured image is trimmed during processing. It allows you to capture the decisive moment in a sharp, clear image.

AA filter simulator

State-of-the-art mechanism to optically minimize moiré and false color


The PENTAX-original AA (anti-aliasing) filter simulator* effectively minimizes moiré and false color by using the camera's SR mechanism to apply microscopic vibrations to the image sensor during exposure. It provides the option of choosing the AA-filter effect for well-balanced images or the AA-filter-free mode for greater resolving power.

    * This function works most effectively with a shutter speed of 1/1000 second or slower.
    * This function may not be used in some shooting modes, or may not be combined with certain functions.

The advanced Pixel Shift Resolution System II for super-high-resolution images

A PENTAX technology to produce high-quality images beyond the power of total pixels\

PENTAX's Pixel Shift Resolution System II* is the super-solution technology which realizes image resolving power and color reproduction far better than that of the conventional Bayer system. By taking advantage of the camera's SR II mechanism, it captures four images of the same scene by slightly shifting the image sensor for each image, obtaining all RGB color data and luminance data from each pixel, then synthesizing them into a single, super-high-resolution composite image. It not only improves image resolving power, but also prevents the generation of false color, reduces high-sensitivity noise, and greatly improves image quality.

RAW-format filing compatibility

The images captured by the Pixel Shift Resolution System can be saved as RAW-format files. You can develop these files within the camera body while adjusting various parameters or turning the Pixel Shift Resolution effect on and off to create the desired image.

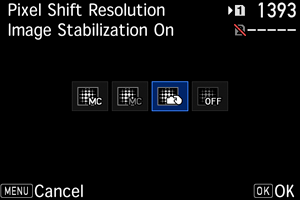

Innovative Dynamic Pixel Shift Resolution mode
Greater flexibility in handheld shooting NEW

In addition to conventional shooting modes, the Pixel Shift Resolution System II features a new Dynamic Pixel Shift Resolution mode*, an innovative technology that takes advantage of slight fluctuations of the subject's position during handheld shooting. The camera closely analyzes four captured images and detects camera shake during handheld shooting before synthesizing them into a super-high-resolution composite image.** By combining this mode with the camera's SR II mechanism, you can use the advanced Pixel Shift Resolution System II more flexibility, even in difficult shooting conditions such as shooting at poorly lit locations or without using a tripod.

  • * When using a tripod, the user is advised not to activate the Dynamic Pixel Shift Resolution mode.
  • ** Captured images may not be properly synthesized and cause mosaic noise with certain subjects or under certain shooting conditions. By capturing images in the RAW or RAW+ format, the user can develop the images unsuitable for the synthesizing process as normal RAW-format images within the camera body.

The K-1 Mark II overcomes challenging field conditions, such as poor weather, darkness and freezing temperatures

SR II in-body shake reduction mechanism

Five-axis, five-shutter-step camera shake compensation

The PENTAX-original sensor-shift-type shake reduction mechanism has been upgraded to provide optimum compensation for all lenses used in handheld shooting. The new-generation SR II (Shake Reduction II) features a five-axis mechanism to compensate for camera shake caused by horizontal and vertical shift* (often generated in macro photography) and camera shake caused by roll, which is difficult to handle by lens-installed shake reduction mechanisms, in addition to more common camera shake caused by pitch and yaw. The SR II unit is controlled with great precision as soon as the camera's power is turned on, and provides a wide compensation range - as much as five shutter steps** - to expand the limits of handheld shooting.

  • * During Live View shooting, this mechanism does not compensate for camera shake caused by horizontally and vertical shift.
  • ** Measured in conformity to CIPA standards, using an HD PENTAX-D FA 28-105mmF3.5-5.6ED DC WR lens at a focal length of 105mm.

Compatible with panning shots

When taking a panning shot, this mechanism efficiently controls the SR unit to detect only the direction of the camera’s movement, while compensating for all other affecting vectors. Because of this, the K-1 Mark II captures beautiful, high-resolution images both in normal shooting and panning photography, without requiring any switching operation.



High-precision AE/AF operation at -3EV illumination
Extra-accurate auto-exposure and autofocus control, even in the dark

An illumination level of -3EV makes it difficult to see a subject with the naked eye, and almost impossible to make accurate focus with manual focusing. Even under such low-illumination conditions, the K-1 Mark II assures high-precision auto-exposure and autofocus operations.* Thanks to its upgraded algorithm, its autofocus response time for poorly illuminated subjects is greatly reduced. Coupled with its super-high-resolution imaging power, the K-1 Mark II delivers exceptional shooting performance in dark locations.

  • * Light metering measured at ISO 100 and with a 50mm F1.4 lens; focusing measured at ISO 100, at room temperature and with 25 middle sensors.

Outdoor-oriented monitor with red-lit monitor display function

Easy, pushbutton control of monitor brightness

The camera's outdoor-oriented monitor, which provides easy setting of the brightness level, has been upgraded. In addition to positive settings to assure the correct brightness level in bright locations, it now provides negative settings to improve visibility in dark locations. It also features a red-lit monitor display function to facilitate monitor viewing when your eyes have become accustomed to a dark location during astronomical or nighttime photography. By assigning this function to the Fx1 button, you can instantly switch the monitor display between the normal and red-lit modes.

Operation Assist Light

Supporting camera operations in the dark

Four Operation Assist Lights are strategically positioned around the camera body: at the upper side of the lens mount, behind the LCD monitor, at the memory card slot, and at the cable switch terminal. With a push of the illumination button, you can turn them on* to facilitate lens and memory card changes, control button operations, and attachment and removal of a cable switch, for more efficient, comfortable shooting of nighttime outdoor scenes and poorly lit indoor subjects.

  • * The LED lights can be switched on and off individually. They are all set to the off mode at default setting.



Dependable dustproof, weather-resistant construction

A completely environment-resistant imaging system, with a weather-resistant lens

A combination of the K-1 Mark II's 87 sealing parts and the optional D-BG6 Battery Grip's watertight body prevents the intrusion of water and dust into their interior. When an AW- or WR-series lens is mounted,* the K-1 Mark II and its lens forms a remarkable digital imaging system totally resistant to demanding environmental factors.

  • * AW stands for All Weather (dustproof and weather-resistant construction), while WR stands for Weather Resistant (simplified weather-resistant construction).

DRII (Dust Removal II) mechanism
Effective removal of foreign particles from the image sensor

Using its piezoelectric element, this innovative mechanism applies ultrasonic vibrations to the optical glass panel placed in front of the image sensor. This effectively removes all dust particles clinging to the image sensor surface, and prevents annoying dust spots from appearing on a captured image.

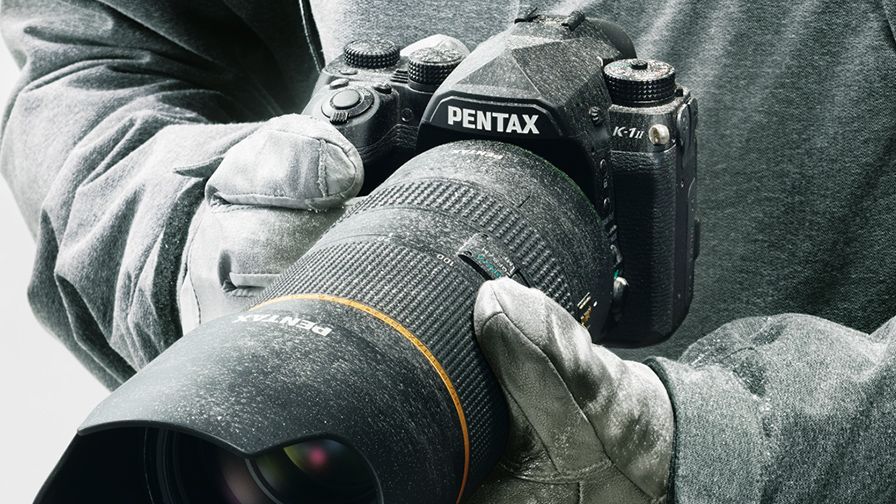

-10°C cold-resistant construction
Unmatched reliability proven under vigorous testing conditions

Anticipating use in cold locations, PENTAX has subjected the K-1 Mark II to exacting environmental tests at temperatures as low as -10°C, and gathered a vast array of data on operational precision, response and stability of mechanisms and circuits, as well as fluctuations in battery voltage.* As the result, the K-1 Mark II assures solid, trouble-free operation even at freezing temperatures.

  • * Battery performance declines as the temperature goes down. When shooting in cold environments, the user is advised to carry spare batteries and keep them warm by storing them in an inside pocket.

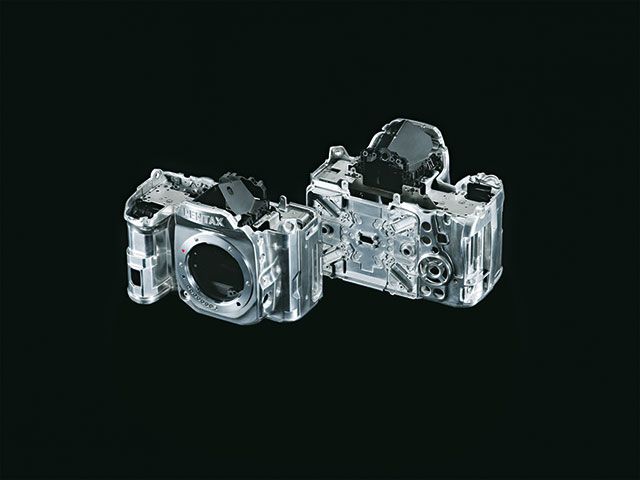

High-rigidity, extra-durable body
A shell structure shielding a metallic chassis with a magnesium alloy casing

The K-1 Mark II's exterior casing is made of highly rigid, lightweight magnesium alloy, which provides excellent shock-resistance and electromagnetic shielding performance. By coupling it with a high-rigidity metallic chassis housing the core components, the K-1 Mark II forms a compound structure to assure outstanding durability and exceptional reliability.

Extra-durable shutter unit
Withstanding 300,000 shutter releases for professional use

After a series of exacting performance tests, the K-1 Mark II's shutter unit has proven its exceptional durability by withstanding a total of 300,000 shutter releases. It assures outstanding operational precision and exceptional durability required for exacting professional work.

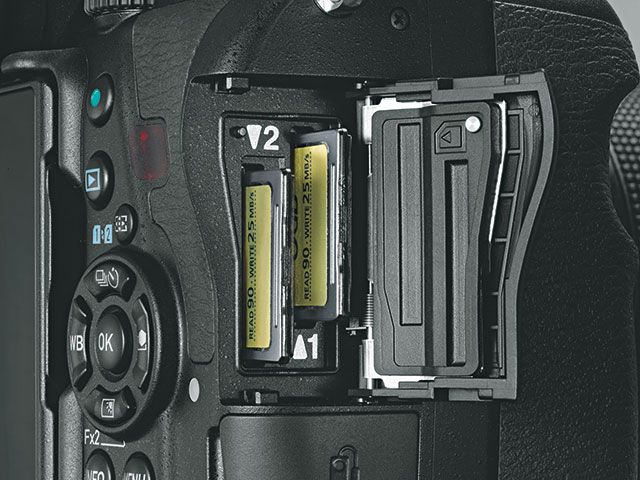

Dual card slot

Large-volume image data filing on two SD memory cards

The K-1 Mark II's card slot accepts two SD memory cards, with a choice of three data filing modes: "Serial" to store a large volume of data successively from one card to another; "Duplicate" (simultaneous filing) for simplified data backup, and "RAW/JPEG Division" to separate data files based on the recording format. It is also possible to copy an image stored on one card to another.

Innovative shooting-support features to capture eye-catching masterpieces

Smart Function

Single-action function control

The K-1 Mark II's Smart Function is a brand-new camera operation system harmonizing an array of features with ease of operation. This functional camera operation system lets you swiftly choose and set the desired function using just two dials positioned on the camera's upper panel, without needing to refer to the menu screen on the LCD monitor.

Flexible Tilt-Type LCD monitor

Innovative mechanism to tilt the monitor to any desired angle along the optical axis

Aiming at aligning the photographer's line of sight precisely with the camera's optical axis while providing a flexible angle adjustment, PENTAX has designed an ideal LCD monitor for the K-1 series by creating an innovative mechanism that supports the monitor with four stays. This monitor has reached two difficult goals that conventional monitors have failed to attain: no deviation from the optical axis; and unrestricted tilt in all directions, horizontally or vertically. You can even tilt it up to a nearly 90-degree angle for low-angle and waist-level photography.



Built-in GPS module and Electronic Compass

Automatic recording of shooting position data

The K-1 Mark II features a built-in GPS module and Electronic Compass, which together display the camera's direction on the LCD monitor. These features allow you to attach Exif data to recorded images, including the location, direction and time of shooting (using Universal Time Coordinated). This comes in particularly handy in situations where you must make meticulous preparations in advance for the direction of shooting, such as the shooting of sunrise scenes and celestial bodies.

GPS Log to track the photographer's movement

The K-1 Mark II's GPS Log function automatically keeps track of the photographer's movement at fixed intervals. By loading a log file on your computer, you can trace the route you have traveled using a mapping application such as Google Earth™.

ASTROTRACER
Effortless tracking and photographing of celestial bodies without an equatorial

By making full use of its GPS module, Electronic Compass and SR II mechanism, the K-1 Mark II simplifies the astronomical photography of celestial bodies, without the help for an equatorial. Based on the latitude data obtained from GPS satellites and other affecting factors (the camera's direction and horizontal/vertical tilt) obtained by its various sensors, the K-1 Mark II calculates the movement of celestial bodies, then synchronizes the movement of its image sensor with that of celestial bodies with great precision. Since it captures stars without a streaking effect even during extended exposures, you can record faint stars, which are difficult to detect with the naked eye, as point images.

  • * The user is advised to use a tripod to stabilize the camera.
  • * The user is advised to read the operating manual thoroughly before shooting.
  • * ASTROTRACER cannot be used with some shooting modes, such as interval shooting and interval composite shooting.

Live View shooting, with an option of electronic shutter mode
An array of handy tools to assist creative photography

In the Live View mode, the PENTAX K-1 Mark II provides a wide range of picture-taking tools. The Flexible Tilt-type LCD monitor lets you clearly view the on-screen image from different angles to optimize shooting comfort. In addition to the conventional focal-plane shutter mode, it also offers the option of the electronic shutter mode, effective in macro and scenic photography in minimizing the vibrations caused by shutter release of the camera's mechanical shutter unit.

Main Live View shooting functions

A choice of AF modes: Face Detection, Auto Tracking, Multi-segment Auto, Select and Spot

Focus Assist to emphasize the outline of the in-focus area

A choice of grid display from five patterns and two colors (white and black)

Zoom display with a maximum magnification of 16 times for easy confirmation of focus condition

Auto Horizon Correction and Composition Adjustment
Convenient tools to compose well-balanced images

By taking advantage of its SR II mechanism, the K-1 Mark II helps you compose well-balanced, flawless images. The Auto Horizon Correction function* rotates the image sensor to compensate for the camera's horizontal tilt, making it useful in handheld shooting. The Composition Adjustment function** allows you to make minute adjustment of image composition with a shift of the image sensor. It comes in handy for Live View shooting using a tripod.

  • * Maximum compensation angle: approx. ±2° (approx. ±1° with SR mechanism activated)
  • ** Maximum compensation range: ±1.5mm (±1mm along the axis of rotation) or ±1°

Digital level
Accurate detection of camera tilt without removing the eye from the subject

The K-1 Mark II's Digital Level displays bar scales at the right side and bottom of the viewfinder to indicate the horizontal and vertical tilt of the camera, allowing you to confirm the horizontal and vertical alignment of the subject without taking the eye off the subject. You can also display the Digital Level on the LCD monitor during viewfinder shooting, Live View shooting and movie recording.

Other features

An array of tools for creative visual expression

● Bulb-timer function

This function lets you set the bulb timer for exposure durations from 10 seconds to 20 minutes, improving operability in bulb shooting.

● 1:1 cropping mode

In addition to the three cropping modes (Auto, FF and APS-C), the camera also provides a 1:1 cropping mode. The viewfinder also displays a 1:1 picture frame to facilitate image composition.

All APS-C-format, K-mount interchangeable lenses are usable on the K-1 Mark II

From ultra-wide angle to super telephoto, an entire selection of high-performance DA-series lenses can be used on the K-1 Mark II without any modification. They deliver exceptional image quality, despite their compact, lightweight design.

Crop mode

Automatic switching of an image area with attachment of a lens

When a DA★-, DA Limited- or DA-series lens is mounted on the K-1 Mark II, its Crop mode automatically switches an image area to the APS-C size covering the middle section of the image field, while displaying the cropping frame in the viewfinder. It not only assures high-resolution images with approximately 15.36 effective megapixels, but also provides an efficient AF sensor coverage of the image area for more flexible image composition during autofocus operation. When you select the FF (Full Frame) setting of the Crop mode, you can even capture a 35mm full-frame image with a DA-series lens.*

    * With certain lenses and/or under certain photographic conditions, a captured image may suffer a drastic drop in brightness and/or resolution in the areas outside the APS-C image area. This setting does not provide compensation of various lens aberrations

Model Description

Type TTL autofocus, auto-exposure SLR digital-still camera
Lens Mount PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)
Compatible Lens KAF4, KAF3, KAF2 (power zoom compatible), KAF, KA mount lens

Image Capture Unit

Image Sensor Primary color filter, CMOS. Size: 35.9 x 24.0 (mm)
Effective Pixels Approx. 36.40 megapixels
Total Pixels Approx. 36.77 megapixels
Dust Removal Image sensor cleaning using ultrasonic vibrations "DR II"
Sensitivity
(Standard output)
ISO AUTO/100 to 819200 (EV steps can be set to 1EV, 1/2EV or 1/3EV)
Image Stabilizer Sensor-shift shake reduction (SRII: Shake Reduction)(5-axis)
AA Filter Simulator Moiré reduction using SR unit. OFF/Type1/Type2/Bracketing(2 images)/Bracketing (3 images)

File Formats

File format RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant
Recorded Pixels [35mm Full Frame]
JPEG: L(36M:7360x4912), M(22M:5760x3840), S(12M:4224x2816), XS(2M:1920x1280)
RAW: (36M:7360x4912)

[APS-C size]
JPEG: L(15M:4800x3200), M(12M:4224x2816), S(8M:3456x2304), XS(2M:1920x1280)
RAW: (15M:4800x3200)
Quality Level RAW (14bit): PEF, DNG
JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous capturing available
Color Space sRGB, AdobeRGB
Storage Medium SD, SDHC and SDXC Memory Card (Conforms to USH-I standards)
Dual SD slot Sequential Use, Save to Both, Separate RAW/JPEG, Image copy between slots possible
Storage Folder Folder Name: Date (100_1018,101_1019...) or User assigned folder name (Default "PENTX")
Recording File File Name: "IMGP****" or User assigned file name
File name numbering: Sequential, Reset

Viewfinder

Type Pentaprism Finder
Coverage (FOV) Approx. 100%
Magnification Approx. 0.70x (50mmF1.4 at infinity)
Eye-Relief Length Approx. 20.6mm (from the view window), Approx. 21.7mm (from the center of lens)
Diopter Adjustment Approx. -3.5m to + 1.2m-1
Focusing Screen Fixed Natural-Bright-Matte III focusing screen
Viewfinder Overlay AF Points, Grid Display, Electronic Level, AF Frame, Spot Metering Frame, Crop

Live View

Type TTL method using image sensor
Focusing Mechanism Contrast detection (Face detection, Tracking, Multiple AF points, Select, Spot)
Focus Peaking: ON/OFF
Display Field of View approx. 100%, Magnified view (up to 16x),
Grid Display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Histogram, Bright area warning, Composition Adjustment

LCD Monitor

Type Wide viewing angle TFT color LCD, Air-gapless glass. Flexible-tilt.
Size 3.2 inch (aspect ratio 3:2)
Dots Approx. 1037K dots
Adjustment Brightness, Saturation and Colors adjustable
Outdoor View Setting Adjustable ±2 step
Night Vision LCD Display ON/OFF

White Balance

Type Method using a combination of the image sensor and the light source detection sensor
White Balance AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image
Fine Adjustment Adjustable ±7 steps on A-B axis or G-M axis

Autofocus System

Type TTL: Phase-matching autofocus
Focus Sensor SAFOX 12, 33 point (25 cross type focus points in the center)
Brightness Range EV-3 to 18 (ISO 100 / at normal temperature)
AF Mode Single AF (AF.S), Continuous AF (AF.C)
AF Point Selection Spot, Select, Expanded Area (S, M, L), Zone select, Auto (33 AF points)
AF Assist Light Dedicated LED AF assist light

Metering

Type TTL open aperture metering using 86K pixel RGB sensor, Multi-segment, Center-weighted and Spot metering
Metering Range EV-3 to 20 (ISO100 at 50mm F1.4)
Exposure Mode Scene Analyze Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3, USER4, USER5
EV Compensation ±5EV (1/2EV steps or 1/3EV steps can be selected)
AE Lock Button type (timer type: two times the meter operating time set in Custom Setting); Continuous as long as the shutter button is halfway pressed

Shutter

Type Electronically controlled vertical-run focal plane shutter
* Electronic shutter when using Pixel Shift Resolution
Shutter Speed Auto:1/8000 to 30 sec., Manual:1/8000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 10 sec. to 20min.)
LV Electronic Shutter ON/OFF

Drive Modes

Mode Selection Still Image:
Single Frame, Continuous (H, M, L), Self-timer (12s, 2s, Continuous), Remote Control (0s., 3s., Continuous), Bracketing (2, 3 or 5 frames), Mirror-up (Possible to use with Remote Control), Multi-Exposure (Possible to use with Continuous, Self-timer or Remote Control), Interval Shooting, Interval Composite, Interval Movie Record, Star Stream

Movie:
Remote Control
* Bracketing, Interval Shooting, Interval Composite, Interval Movie Record and Star Stream are possible to use with Self-timer/Remote Control.
Continuous Shooting [35mm full-frame]
Max. approx. 4.4 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 70 frames, RAW: up to approx. 17 frames
Max. approx. 3.0 fps, JPEG L: ★★★ at Continuous M): up to approx. 100 frames, RAW: up to approx. 20 frames
Max. approx. 0.7 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 100 frames

[APS-C size]
Max. approx. 6.4 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 100 frames, RAW: up to approx. 50 frames
Max. approx. 3.0 fps, JPEG L: ★★★ at Continuous M): up to approx. 100 frames, RAW: up to approx. 70 frames
Max. approx. 1.0 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 100 frames

*ISO100
Multi-Exposure Composite Mode(Additive/Average/Bright)
Number of Shots(2 to 2000 images)
Interval Shooting [Interval Shooting]
Interval: 2s. to 24h./ Standby Interval: Min.・1s. to 24h., Number of shots: 2 to 2000 images, Start Interval: Now/Self-timer/Remote Control/Set Time

[Interval Composite]
Interval: 2s. to 24h./ Standby Interval: Min.・1s. to 24h., Number of shots: 2 to 2000 images, Start Interval: Now/Self-timer/Remote Control/Set Time, Composite Mode: Additive/Average/Bright, Save Process: On/Off

[Interval Movie]
Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Standby Interval: Min・1s. to 24h., Number of shots: 8 to 2000 images (8 to 500 images at 4K), Start Interval:Now/Self-timer/Remote Control/Set Time

[Star Stream]
Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Standby Interval: Min・1s. to 24h., Number of shots: 8 to 2000 images (8 to 500 images at 4K), Start Interval: Now/Self-timer/Remote Control/Set Time, Fade-out: Off/Low/Medium/High

External Flash

Flash Modes Auto Flash Discharge, Auto Flash + Red-eye Reduction, Flash On, Flash On + Red-eye Reduction, Slow-speed Sync, Slow-speed Sync + Red-eye, P-TTL, Contrast-control-sync, High-speed sync, Wireless sync
* Contrast-control-sync and High-speed sync requires 2 or more dedicated external flash
Sync Speed 1/200sec.
Flash Exposure Compensation '-2.0~+1.0EV

Capture Settings

Custom Image Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
Cross Process Random, Preset 1-3, Favorite 1-3
Digital Filter Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome
Clarity 'Adjustable ±4 step
Skin Tone Type1/Type2
HDR Auto, HDR1, HDR2, HDR3, Advanced HDR, Exposure bracket value adjustable, Automatic composition correction function
Pixel Shift Resolution Available, Motion Correction ON/OFF, Image Stabilization On
Lens Correction Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction
D-RANGE Compensation Highlight Correction, Shadow Correction
Noise Reduction Slow Shutter Speed NR, High-ISO NR
GPS GPS Logging (Logging Interval, Logging Duration, Memory Card Options), GPS Time Sync
Electronic Compass Available
Astrotracer Possible
Horizon Correction SR On: correction up to 1 degrees, SR Off: correction up to 2 degrees
Composition Adjustment Adjustment range of ±1.5mm up, down, left or right (1mm when rotated); Rotating range of 1 degree
Electronic Level Displayed in viewfinder (Horizontal and vertical); Displayed on LCD monitor (Horizontal and vertical)

Movie

File Format MPEG-4 AVC/H.264(MOV)
Recorded Pixels Full HD(1920x1080, 60i/50i/30p/25p/24p)
HD (1280x720, 60p/50p)
Sound Built-in stereo microphone, external microphone (Stereo recording compatible) Recording Sound Level adjustable, Wind Noise Reduction
Recording Time Up to 25 minutes or 4GB ; automatically stops recording if the internal temperature of the camera becomes high.
Custom Images Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
Cross Processing Random, Preset 1-3, Favorite 1-3.
Digital Filter Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Playback

Playback View Single frame, Multi-image display (6,12, 20, 35, 80 segmentation), Display magnification (up to 16, 100% display and quick magnification available), Grid display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright Information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation, Folder Display, Calendar Filmstrip Display, Slide Show,
Delete Delete single image, delete all, select & delete, delete folder, delete instant review image
Digital Filter Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim, Monochrome
RAW Development RAW file select:
Select Single Image, Select Multiple Images, Select a folder

RAW Development Parameter:
White Balance, Custom Image, Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space
Edit Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available),
Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy

Customization

USER Mode Up to 5 settings can be saved
Custom Functions 26 items
Mode Memory 17 items
Button Customization Fx1 Button, Fx2 Button (One Push File Format, Outdoor View Setting, Flash Mode, Pixel Shift Resolution, Shake Reduction, Horizon Correction, Electronic Level) AF Button (AF1/ AF2/ Cancel AF)
Preview Dial (Optical Preview/Digital Preview)
Various settings for the action of the e-dials in each exposure mode can also be saved.
AF Customization AF.S: Focus-priority/ Release-priority
1st Frame Action in AF.C: Release-priority/Auto/Focus-priority
Action in AF.C Continuous: Focus-priority, Auto, FPS-priority
Hold AF Status: OFF, Low, Medium, High
AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot
AF with Remote Control: Off/On
Operation Control Lock Type1: E-Dial, EV Compensation, ISO, Green Button, AE Lock
Type2: 4-way controller, AF point change button, Change AF Point, OK Button, Menu Button
Text Size Standard, Large
World Time World Time settings for 75 cities (28 time zones)
Language English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese
AF Fine Adjustment ±10 step, Uniform adjustment, Individual adjustment (up to 20 can be saved)
Illumination Settings LCD Panel (High/Low/Off), Backside Controls (High/Low/Off), Lens Mount (On/Off), Card Slot/Connector (On/Off)
Indicator Lamps Wi-Fi (High/Low/Off), GPS (High/Low/Off), Self-timer (On/Off), Remote Control (On/Off)
Copyright Information Names of "Photographer" and "Copyright Holder" are embedded to the image file.
Revision history can be checked using the provided software.

GPS/Electronic Compass

Satellites GPS, QZSS, SBAS(WAAS/EGNOS/GAGAN/MSAS)
Reception Frequency L1 1575.42MHz
Recorded Information Latitude, Longitude, Altitude, Time (UTC), Direction
Geodesics World Geodetic System (WGS84)
GPS Logging KML format, Logging Interval: 5/10/15/30sec. /1min., Logging Duration: 1-24hr. (Up to 9hours at Logging Interval 5sec. Up to 18hrs. at Logging Interval 10sec.)
Electronic Compass Azimuth calculation using triaxial geomagnetic sensor and triaxial acceleration sensor, True north standard

Power Supply

Battery Type Rechargeable Lithium-ion Battery D-LI90P
AC Adapter AC Adapter Kit K-AC167(Optional)
Battery Life Number of recordable images: Approx.: 670 images
Playback time: Approx. 340 minutes
* With a fully-recharged Rechargeable Lithium-ion Battery. Tested in compliance with CIPA standard.
Actual results may vary depending on the shooting condition.

Interfaces

Connection Port USB2.0 (micro B), External power supply terminal, External cable switch terminal, X-sync socket, HDMI output terminal (Type D) , Stereo microphone input terminal, Headphone terminal
USB Connection MSC/PTP

Wireless LAN

Standards IEEE 802.11b/g/n
Frequency (Center Frequency) 2412MHz~2462MHz (1ch~11ch)
Security Authentication: WPA2, Encryption: AES

Dimensions and Weight

Dimensions Approx. 136.5mm (W) x110mm (H) x 85.5mm (D) (excluding protrusions)
Weight Approx. 1010g (Including dedicated battery and SD Memory Card),
Approx. 925g (body only)

Operating Environment

Temperature -10°C~40°C (14°F~104°F)
Humidity 85% or less (no condensation)

System Requirements

<Windows>

OS Windows 10 (FCU/CU)(32bit/64bit) / Windows 8.1 (32bit/64bit) / Windows 8 (32bit/64bit) / Windows 7 (32bit/64bit)
CPU Intel Core 2 Duo or higher
RAM 4GB or more
Free Disk Space Program installation and start-up: 100 MB or more of available space
Image file saving: Approximately 15 MB per file (JPEG) / approximately 50MB (RAW)
Monitor 1280 x 1024 dots, 24 bit full-color or more

<Macintosh>

OS macOS v10.13 High Sierra / macOS v10.12 Sierra / OS X v10.11 El Capitan / OS X v10.10 Yosemite
CPU Intel Core 2 Duo or higher
RAM 4GB or more
Free Disk Space Program installation and start-up: 100 MB or more of available space
Image file saving: Approximately 15 MB per file (JPEG) / approximately 50MB (RAW)
Monitor 1280 x 1024 pixels, 24 bit full-color or more

* The operating system must be pre-installed in the computer, and updated to the latest version.
  The system requirements above do not necessarily gurantee proper operation with all computers.

Back to the top

loader
