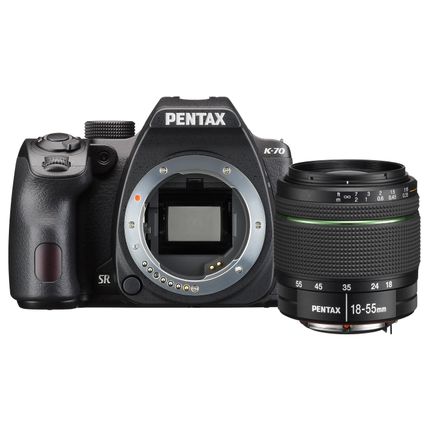

Type: TTL autofocus, auto-exposure SLR digital-still camera with built-in retractable P-TTL flash

Lens Mount: PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)

Compatible Lens: KAF4, KAF3, KAF2(power zoom not compatible, KAF, KA mount lens)

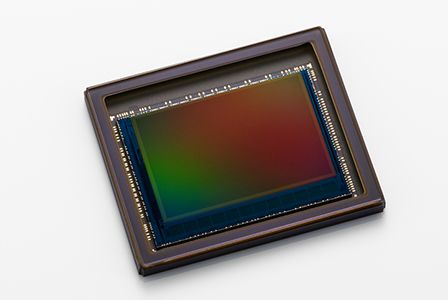

Image Sensor: Primary color filter, CMOS Size 23.5 x 15.6 (mm) APS-C

Effective Pixels: Approx. 24.24 megapixels

Total Pixels: Approx. 24.78 megapixels

Dust Removal: SP coating and CMOS sensor operations

Sensitivity: ISO AUTO/100 to 204800 (EV steps can be set to 1EV, 1/2EV, or 1/3EV) TBD
(standard output)

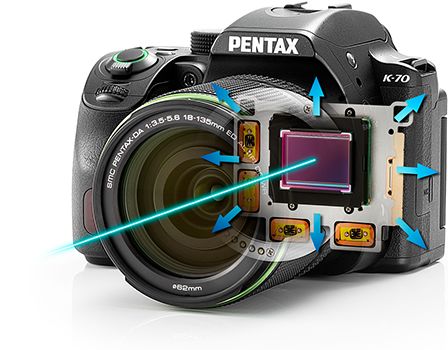

Image Stabilizer: Sensor-shift Shake Reduction system

AA Filter Simulator: Moiré reduction using SR unit. OFF/Type1/Type2/Bracket (3 frames)

File Formats: RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant

Recorded Pixels:
JPEG: L(24M:6000x4000), M(14M:4608x3072), S(6M:3072x2048), XS(2M:1920x1280)

RAW: (24M:6000x4000)

Quality Level:
RAW (14bit): PEF, DNG
JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous capturing available

Color Space : sRGB, Adobe RGB
Storage Medium SD, SDHC and SDXC Memory Card (conforms to USH-I standards)

Storage Folder: Folder name - Date (100_1018, 101_1019….) or User assigned folder name (Default “PENTX”)

Recording File: File name “IMGP****” or user assigned file name, File name numbering - Sequential, Reset

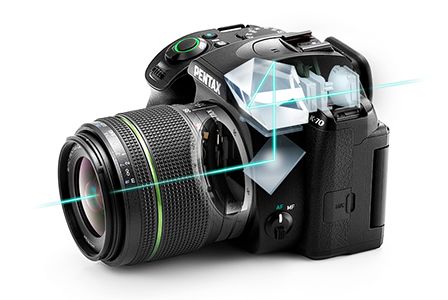

Type: Pentaprism Finder

Coverage (FOV): Approx. 100%

Magnification: Approx. .95x
(50mmF1.4 at infinity)

Eye-Relief Length: Approx 20.5mm (from the view window), approx. 22.3mm (from the center of lens)

Diopter Adjustment: Approx.-3.5m to +1.5m

Focusing Screen: Natural-Bright-Matte III focusing screen

Type: TTL method using image sensor

Autofocus: Hybrid AF (image plane phase-matching and contrast detection)

AF area: Face Detection, Tracking, Multiple AF points, Select, Spot Focus
Peaking: On/Off

Display: Field of view approx. 100%, magnified view (up to 16x), grid display (4x4 grid, golden section, scale display,
square 1, square 2, Grid color: black/white), histogram, bright area warning

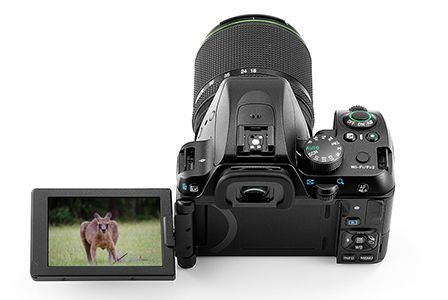

Type: Vari-angle TFT color LCD monitor featuring an air-gapless structure, tempered-glass front panel

Size: 3.0 inch (aspect ratio 3:2)

Dots: Approx. 921k dots

Adjustment: Brightness, saturation and colors adjustable

Outdoor View: Adjustable ±2 step

Night vision display: ON/OFF

Type: TTL method using image sensor

White Balance: Auto, Multi-auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D: Daylight color, N: Daylight white, W: Cool White, L: Warm white), Tungsten light, CTE, Manual (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a capture image.

Fine adjustment: Adjustable ±7 steps on A-B axis or G-M axis

Type: TTL: Phase-matching autofocus

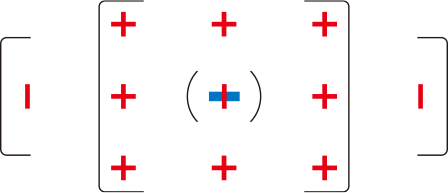

Focus Sensor : SAFOX X, 11 points (9 cross type focus points in the center)

Brightness Range: EV -3 to 18 (ISO100/at normal temperature)

AF mode: Single AF (AF, S) Continuous AF (AF, C), Auto select AF (AF, A)

AF point selection : Auto: 11 points, Auto: 5 points, Select, Expanded Area Select, Spot

AF Assist Light: Dedicated LED AF assist light

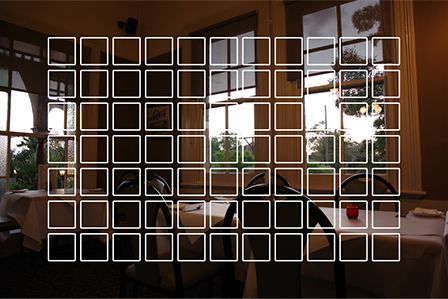

Type: TTL open aperture, 77 segment metering, center-weighted and sport metering

Metering Range: EV 0 to 22 (ISO100 at 50mm F1.4)

Exposure Mode: Auto Picture mode (Standard, Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest, Scene Mode (Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest, Night Scene, Night Scene HDR, Night Snap, Food, Pet, Kids, Surf & Snow, Backlight Silhouette, Candlelight, Stage Lighting, Museum), Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb

EV Compensation : ±5 (1/2 EV steps or 1/3 EV steps can be selected)

AE lock: Can be assigned to the AF/AE-L button

Type: Electronically controlled vertical-run focal plane shutter (electronic when using Pixel Shift Resolution)

Shutter Speed: Auto: 1/6000 to 30 sec., Manual: 1/6000 to 30 sec (1/3 EV steps or ½ EV steps), Bulb (10 sec to 20 min)

Mode Selection - Still Image: Single Frame, Continuous (H, L), Self-timer (12s, 2s, Continuous), Remote Control (0s, 3s, continuous), Bracketing (2,3, or 5 frames), Mirror up, Multi-exposure, Interval shooting, Interval composite, Interval movie record, star stream

Movie: Remote Control

Cont. Shooting: Max. approx. 6.0 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 40 frames, RAW: up to approx. 10 frames, RAW+: up to approx. 8 frames Max. approx. 3.0 fps, JPEG L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 16 frames, RAW+: up to approx. 11 frames

Multi-Exposure: Composite Mode (Additive/Average/Bright), Number of shots (2 to 2000 times)
Interval Shooting
(Standard Interval Shooting) Interval: 3s to 24h / Standby interval: 1s to 24h, Number of shots: 2 to 2000, Start interval: Now/Self-timer/remote control/set time
(Interval Composite) Interval: 2s. to 24h./ Standby Interval: Min.･1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Remote Control/Set Time, Composite Mode Additive / Average / Bright, Save Process: ON/OFF
(Interval Movie) Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min･1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval:Now/Self-timer/Remote Control/Set Time
(Star Stream) Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min･1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval: Now/Self- timer/Remote Control/Set Time, Fade-out: OFF/Low/Medium/High

Built-in Flash: Built-in retractable P-TTL, GN: approx. 12 (ISO100/m), Angle of view of 28mm lens (36mm format equ.)

Flash Modes: Auto Flash Discharge, Auto Flash + Red-Eye Reduction (Auto Picture, Scene) Flash On, Flash On + Red-Eye Reduction, Slow-speed Sync, Trailing Curtain Sync, Manual Flash Discharge (full-1/128)

Sync Speed: 1/180th sec.

Exposure Comp: -2.0~+1.0EV

External Flash: P-TTL, Leading Curtain Sync, Trailing Curtain Sync, Contrast-control-Sync, Wireless Sync

Custom Image: Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Cross Process: Random, Preset 1-3, Favorite 1-3

Digital Filter: Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Clarity: Adjustable ±4 step

Skin Tone: Type1, Type2, OFF

HDR: Auto, HDR1, HDR2, HDR3, Advanced HDR, OFF, Exposure bracket value adjustable, Automatic composition correction function

Pixel Shift Res.: Motion Correction ON, Motion Correction OFF, OFF

Lens Correction: Distortion Correction, Peripheral Illumination Correction, Lateral Chromatic Aberration Correction,

Diffraction Correction
D-RANGE Comp.: Highlight Correction, Shadow Correction

Noise Reduction: Slow Shutter Speed NR, High-ISO NR

Horizon Correction: SR On: correction up to 1 degrees, SR Off: correction up to 1.5 degrees

Electronic Level: Displayed in viewfinder
Horizontal directiononly, Displayed on LCD monitor: Horizontal and vertical direction

File Format: MPEG4 AVC/H.264 (MOV)

Recorded Pixels: Full HD (1920 x 1080, 60i/50i/30p/25p/24p)
HD (1280 x 720, 60p/50p)

Auto Focus: Hybrid AF (Image plane phase-matching and contrast detection)
AF mode: Single AF (AF, S), Continuous AF (AF, C)
AF area: Multiple AF points, Select, Spot
Focus Peaking: ON/OFF

Sound: Built-in stereo microphone, external microphone input. Recording sound level adjustable

Recording Time: Up to 26 minutes or 4GB

Custom Images: (Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Cross Processing: Random, Preset 1-3, Favorite 1-3

Digital Filter: Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Playback view: Single frame, Multi-image display (6,12, 20, 35, 80 segmentation), Display magnification (up to 16x, Quick Zoom view available), Grid display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright Information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation, Folder Display, Calendar Filmstrip Display, Slide Show
Digital Filter Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim, Monochrome

RAW: RAW file select：Select Single Image, Select Multiple Images, Select a folder

RAW Development Parameter: White Balance, Custom Image, Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space

Edit: Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available), Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy

USER Mode: Up to 3 settings

Custom Functions: 24 items

Modes: 16 items

Buttons: Fx1 Button, Fx2 Button (One Push File Format, Wi-Fi, Outdoor View Setting, Night Vision LCD Display, Preview, Red, Electronic Level, Change AF Area), AF/AE-L button (AF1, AF2, Cancel AF, AE Lock)

AF: AF.S: Focus-priority/ Release-priority, 1st Frame Action in AF.C: Release-priority/Auto/Focus- priority. Action in AF.C Continuous: Focus-priority, Auto, FPS-priority, Hold AF Status: OFF, Low, Medium, High, AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot AF with Remote Control: OFF/ON

World Time: 75 Cities (28 time zones)

Language: English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese

Battery Type: Rechargeable Lithium-Ion Battery D-LI109

AC Adapter: Kit K-AC168 (optional)

Battery Life: Approx 480 images (w/o flash)
Playback time approx. 270 minutes

Connection Port: USB 2.0 (micro B), HDMI output(type D), stereo mic input/cable switch input, (both 3.5mm)

USB Connection: MSC/PTP

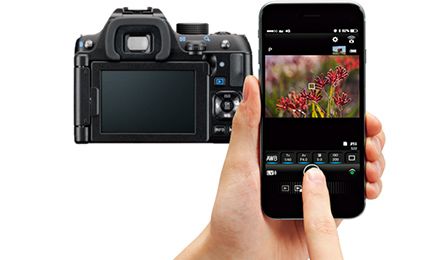

Standards: IEEE802.11b/g/n
Freq Bandwidth 2401MHz~2473MHz (1ch~11ch)
Max Radio Freq: 8.16dBm EIRP

Power Security Authentication: WPA2, Encryption: AES

Dimensions: Approx 4.9” (w) x 3.7 “ (h) x 2.9” (d), (125.5mm x 93.0mm x 74.0mm), excluding protrusions

Weight: Approx 24.3oz (688g), Including battery and SD card

Temperature 14°F～104°F (-10°C～40°C)

Humidity: 85% or less (no condensation)
