Pentax 645Z DSLR Medium Format - Body Only

$7,699.00
no stock  NO STOCK
no stock  NO STOCK
Find a Dealer |
Code: 16601
  • 51.4 MP CMOS sensor
  • 3 fps continuous shooting
  • Live view with tiltable LCD panel
  • Full HD movies in h.264 video
  • HDMI port outputs images, video & sound
  • Customizable RAW/Fx button
  • ISO 100-204800
  • HDR image capture

PENTAX 645Z.
The Camera That Attained The Title Of “The Ultimate”.
The Flagship Camera That Ushers In The Next Generation Has Given Rise To A New Legend

The PENTAX 645Z is the medium-format camera that leads the pack in imaging performance. Amongst the spirit of the digital age, the PENTAX 645D made its presence felt intensely as a medium-format digital camera with an integrated image sensor, astounding resolution, and dynamic resolving power. But the advancements didn’t stop there. The PENTAX 645Z , equipped with a new CMOS image sensor with approximately 51.4 million pixels, puts the power of ultra high definition images in your hand. In addition to the new tilt-able LCD monitor and Live View function, significantly improved responsiveness including AF, image processing and high-speed Instant Review are added. Portability and agility have been polished and image quality that can only be called ‘hyper realistic’ has been unquestionably achieved.

The PENTAX 645Z. Gaze at the distant heights it has achieved and take a step into unknown realms of photography

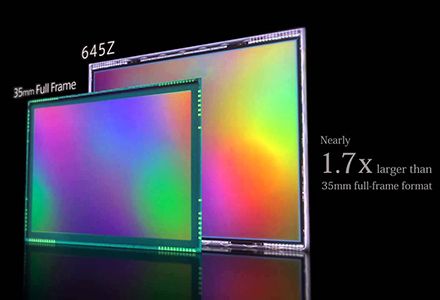

Approx. 51.4 Million Effective Pixels,
43.8 X 32.8mm Large CMOS Image Sensor

Capture everything reflected in the eyes and felt by the heart. The medium format CMOS image sensor meets the ideals of the photographer. This sensor is approximately 1.7 times larger compared to the dimension of a full-frame 35 mm format. The effective pixels are approximately 51.4 million. Together with the optical performance of PENTAX 645 lenses, this produces unsurpassed resolution and smooth gradation representations and the three-dimensional feeling and atmosphere that will overwhelm the viewers.

Class-leading speed & response

The 645Z offers a fast frame rate of 3 fps, quick image processing to rapidly review images, and swift image transfer with a USB 3.0 computer connection.

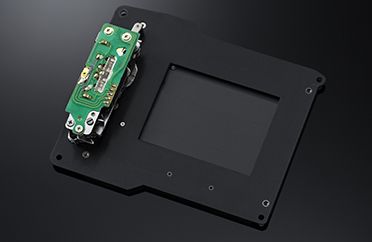

645Z Shutter Unit

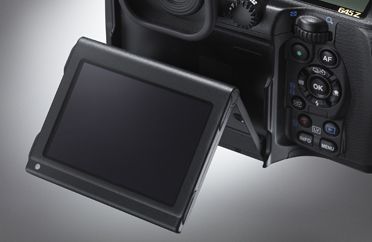

645Z Tiltable

Versatile Live View & tiltable LCD

The high-resolution, tiltable, air-gapless 3.2 inch LCD monitor with approx. 1,037,000 dots offers live view for convenient framing and reviewing of image lighting. Tilting LCD is convenient for waist-level or overhead shooting.

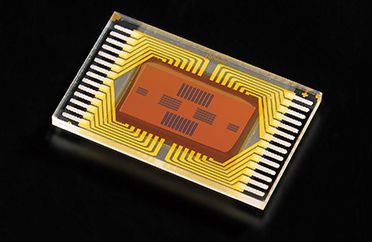

Safox 11 Autofocus Module

SAFOX 11 autofocus assures the sharpest focus. Maximizing 27 AF sensors and a vast light sensitivity range of –3EV to +18EV, the focus module includes 25 cross sensors and three AF sensors dedicated to low-light focusing.

645Z SAFOX

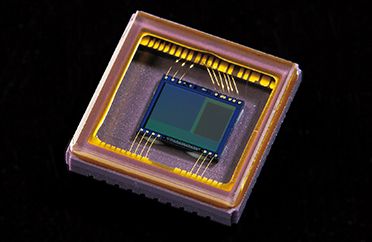

645Z AE Sensor

Real-time scene analysis with 86,000 pixel sensor

The new Real-Time Scene Analysis System features an 86,000 pixel RGB light-metering sensor and improved algorithms that further enhance accuracy of exposure, white balance and autofocusing. Get a perfectly exposed image even in difficult lighting conditions.

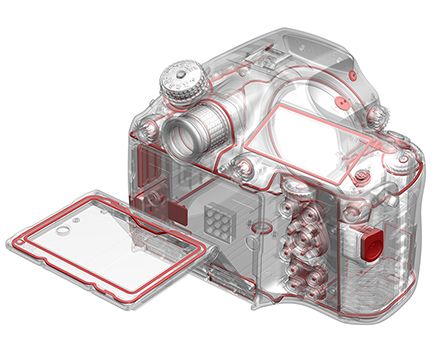

Fully weather & coldproof design

A magnesium alloy body, die cast aluminum chassis, and 76 special seals make the 645Z fully weather and coldproof. Resist water, fog, snow, sand and dust, for top performance in extreme field conditions, or studio.

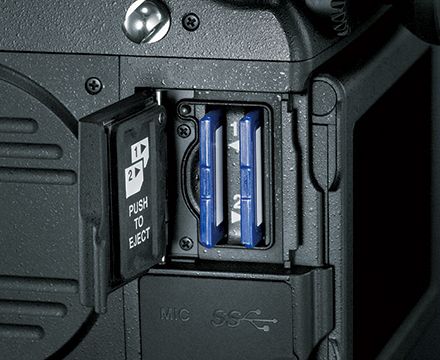

Dual SD card slots & optional flu-card

Studio and macro shooters will like the optional 16 GB flu-card. It lets you remotely change settings such as aperture, shutter speed and ISO, shift the AF focus point, release the camera shutter, check a live-view image, and browse and download images to any web browser enabled device.

Dual slot SD/SDHC/SDXC memory card support ensures fast and reliable storage for high resolution files, simultaneously saving in multiple formats, assigning images to different cards based on their original format, or easily holding one memory card in reserve.


Type

TTL autofocus, auto-exposure medium format digital SLR camera

Sensor

Type: CMOS with a primary color filter
Size: 43.8 x 32.8 (mm)
Color depth: 8 bits/channel JPG, 14 bits/channel RAW
Effective pixels: 51.40 MP
Total pixels: 52.99 MP
Still resolution:
JPEG: L (51M: 8256 x 6192), M (36M: 6912 x 5184), S (21M: 5376 x 4032), XS (3M: 1920 x 1440)
RAW: L (51M: 8256 x 6192)
TIFF: L (51M: 8256 x 6192)
Quality levels: JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous recording available, RAW (14-bit): PEF, DNG
Movie (resolution/FPS):
Full HD (1920x1080, 60i/50i/30p/25p/24p), HD (1280x720, 60p/50p/30p/25p/24p)
Dust Removal: Image sensor cleaning using ultrasonic vibrations "DR II" with the Dust Alert function

Lens

Type/construction: PENTAX 645AF2 mount with AF coupler, lens information contacts, and power contacts (stainless steel)
Usable lenses: PENTAX 645AF2, 645AF and 645A mount lenses (PENTAX 67 medium format lenses useable with adapter), SDM function: Yes

Focus System

Type: SAFOX 11 TTL phase-matching autofocus with 27 AF points (25 cross type focus points in the center)
AF modes: Single AF (AF.S), Continuous AF (AF.C), Focus operation customizable, Manual
Focus Area Selection Modes: Spot, Select, Expanded Area AF (S, M, L), Zone Select, Auto (27 AF Points)
Brightness Range: EV -3 to 18 (ISO 100, at normal temperature)

Viewfinder

Type: Keplerian telescopic trapezoid prism finder
Coverage (field of view): Approx. 98%
Magnification: Approx. 0.62 x (55mmF2.8 at infinity), Approx. 0.85 x (75mmF2.8 at infinity)
Standard focusing screen: Interchangeable Natural-Bright-Matte focusing screen
Diopter adjustment: Approx. -3.5 m to + 2.0 m-1
Depth of field preview: Optical (diaphragm stop-down), Digital
Eye-relief length: Approx. 21 mm (from view window), Approx 24.1 mm (from center of lens)

LCD Monitor

Type: 3.2” Tiltable TFT color LCD monitor featuring an air-gapless structure with an AR-coated, tempered-glass front panel and brightness/saturation/color adjustments
Resolution: Approx. 1037K dots
Wide angle viewable: Yes

External Flash

Type: Hotshoe (P-TTL), high speed sync and wireless w PENTAX dedicated flash, X-Sync Socket
Flash Modes: Flash On, Flash On+Red-eye Reduction, Slow-speed Sync, Slow-speed Sync+Red-eye, P-TTL, Trailing Curtain Sync, contrast-control-sync, high-speed sync, wireless sync (available with a dedicated external flash)
Flash exposure compensation: -2 to +1 EV (1/2 steps)
Synchronization speed: 1/125 sec

Storage Media

Removable memory: SD, SDHC*, SDXC* memory card, Eye-Fi card, FLUCARD *UHS-I compatible
Dual Card Slot: Sequential save, Save to Both Dual save, Separate RAW/JPG, Copying images between slots possible

Interfaces

Connection Ports: USB 3.0 (micro B), external power supply terminal, cable switch terminal, X-sync socket, HDMI output terminal (Type D), stereo microphone input terminal (USB Connection: MSC/PTP)
Video out: HD (via HDMI), NTSC, PAL

Power Supply

Battery Type: Rechargeable Li-Ion battery D-LI90
Recordable images: Approx. 700 (approx 560 w 50% flash, CIPA)
Playback time: Approx. 400 min
Movie recording time: Up to 25 minutes
automatically stops recording if the internal temperature of the camera becomes high.
AC adapter available: AC Adapter Kit K-AC132 (Optional)

Physical Specs

Body dimensions (W x H x D): 6.14in x 4.6in x 4.84in (excluding protrusions)
Body weight: Approx. 54.67oz (including battery and memory card)
Body only: Approx. 51.85oz
Construction material(s): Magnesium alloy shell over aluminum chassis
Weather resistant: Yes (76 special seals)
Operating temperature: 14-104°F (-10 to 40°C)

Language Support

English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese

Image Stabilization

Type: Lens-shift type (When using SR (Shake Reduction) system lens)

Metering System

Type: TTL open aperture metering using 86K pixel RGB sensor
Sensitivity range: EV -1 to 21 (ISO100 at 55mmF2.8)
Metering Modes: Multi-segment metering, Center-weighted metering, Spot metering
Exposure compensation: ±5 EV (1/3 EV steps or 1/2 EV steps can be selected)
AE Lock: Button type (timer-control: two times the meter operating time set in Custom Setting), Continuous as long as the shutter release button is depressed halfway
Exposure bracketing: 2, 3 or 5 frames, Available with Continuous, Self-timer or Remote Control

ISO Sensitivity

Auto: ISO AUTO/100 to 204800 (EV steps can be set to 1EV, 1/2EV, or 1/3EV)
Bulb mode: Auto ISO n/a Manual: 100-51200 (1, 1/2, 1/3 steps)

White Balance

Type: system combining CMOS image and light source detection sensors
Auto, Multi Auto, Daylight, Shade, Cloudy, Fluorescent Light (D: Daylight Color,
N: Daylight White, W: Cool White, L: Warm White), Tungsten, Flash, CTE
Manual mode(s): Manual (up to 3 settings can be saved), Color Temperature (up to 3 settings can be saved), Copying the white balance settings of a captured image possible

Shutter

Type: Electronically controlled vertical-run focal plane shutter
Shutter speed: Auto: 1/4000 to 30 sec., Manual: 1/4000 to 30 sec. (1/3 EV steps or 1/2 EV steps), Bulb

Capture Modes

Exposure modes: Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3
Custom Image: Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Bleach Bypass, Reversal Film, Monochrome, Cross Processing (Random, Preset 1-3, Favorite 1-3)
HDR Capture: Auto, Type1, Type2, Type3, Exposure Bracket Value adjustable, Auto Align (automatic composition correction function) available
Noise Reduction: Slow Shutter Speed NR, High-ISO NR
Dynamic Range Settings: Highlight Correction, Shadow Correction
Lens Correction: Distortion Correction, Lateral Chromatic Aberration Correction, Peripheral Illumination Correction, Diffraction Correction
Electronic Level: Displayed in viewfinder and LCD panel (horizontal direction only)
displayed on LCD monitor (horizontal direction and vertical direction)
Data record: Folder Name: Date (100_1018, 101_1019...) or user-assigned (default: PENTX) embed copyright. Date stamp: n/a

Driver Modes

Mode selection: Stills: Single Frame, Continuous (H, L), Self-timer (12 sec., 2sec.), Remote Control (immediately, 3 sec., continuous), Multi-exposure (available with Continuous, Self-timer or Remote Control), Interval Shooting, Interval Composite
Movie: Remote Control, Interval Movie Record
Multi-exposure: Composite Mode (Additive/Average/Bright) Number of Shots (2 to 2000 images), Interval 2000 shots, 2 sec to 24 hrs, time delay available)
Continuous shooting: Max approx. 3 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 30 frames, RAW: up to approx. 10 frames, TIFF: up to approx. 12
Max. approx. 4.5 fps, JPEG (L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 25 frames, TIFF: up to approx. 15
*When the sensitivity is set to ISO100
Self-timer: Yes (12s, 2s)
Remote control: Yes, infrared (0s, 3s, continuous), cable switch

Playback Modes

Playback view: Single image display, Multi-image display (6, 12, 20, 35, 80 thumbnails), Image magnification (up to 16x, 1x display and quick zoom available), Grid Display (Grid Style: 4x4 Grid, Golden Section, Scale, Square 1, Square 2, Grid Color: translucent black, translucent white), Rotated image display, Histogram (Y histogram, RGB histogram), Highlight Alert, Auto Image Rotation, Detailed Information Display, Copyright Information (Photographer, Copyright Holder), Folder Display, Calendar Filmstrip Display, Slideshow, *GPS information (latitude, longitude, altitude, Coordinated Universal Time (UTC)), *with optional O-GPS1 unit
Digital filters (playback): Base Parameter Adj, Extract Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim
RAW Development: Select single image, Select multiple images, Select a folder
Development parameters: File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space, Distortion Correction, Lateral Chromatic Aberration Correction, Peripheral Illumination Correction, Diffraction Correction, Color Fringe Correction, White Balance, Custom Image, Digital Filter, HDR, Sensitivity, High-ISO NR, Shadow Correction

File Formats

Still: RAW (PEF/DNG), TIFF, JPEG (Exif 2.30), DCF2.0 compliant
Movie: MPEG-4 AVC/H.264 (MOV) *Motion JPEG (AVI) for Interval Movie Record

Custom Functions

29 available

Computer Requirements

Windows: Windows 8.1 (32 bit/64 bit) / Windows 8 (32 bit/64 bit) / Windows 7 (32 bit/64 bit) / Windows Vista (32 bit/64 bit), Intel Core 2 Quad or higher, 4GB or more
Mac: Mac OS X 10.9 /10.8 / 10.7 / 10.6, Intel Core 2 Quad or higher, 4GB or more

Battery Life

Recordable images: Approx. 700 (approx 560 w 50% flash, CIPA)
Playback time: Approx. 400 min

Dimensions

Body dimensions (W x H x D): 6.14in x 4.6in x 4.84in (excluding protrusions)

Weight

Body weight: Approx. 54.67oz (including battery and memory card)
Body only: Approx. 51.85oz

In the Box:

  • Pentax 645Z Medium Format DSLR Camera
  • Pentax D-LI90(E) Lithium-Ion Battery (7.2V, 1860mAh)
  • Pentax K-BC90 Battery Charger
  • Pentax Hotshoe Cover FK
  • Body Mount Cap 645
  • O-ST150 Strap
  • Standard Eyecup 645
  • O-EC107 Large Eye Cup
  • Sync Socket 2p Cap
  • 2 x Triangular Ring
  • Protective Cover
  • Software CD-ROM S-SW150
