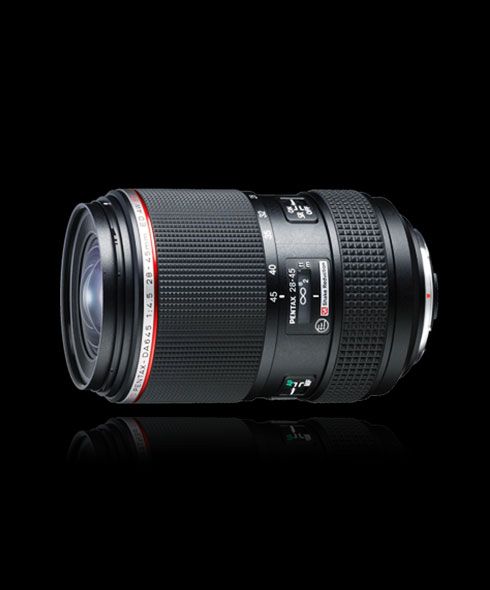

Ultra wide-angle zoom lens designed specifically for degital use, featuring the best of PENTAX lens technology.

Providing focal lengths from 22mm to 35.5mm in the 35mm format, this is exclusively designed for digital imaging. Its image circle is optimized for an image sensor of the new PENTAX 645Z medium-format digital SLR camera, and a number of PENTAX-developed technologies including advanced lens coatings are incorporated, to deliver super-high-resolution images made possible only by medium-format digital SLR cameras.

First ultra-wide-angle zoom lens for use with medium-format digital SLR cameras

This zoom lens offers a zoom ratio of approximately 1.6 times to cover ultra-wide-angle to wide-angle ranges (for focal lengths of 22mm to 35.5mm in the 35mm, when mounted on a PENTAX 645Z or 645D camera body). With visual effects unique to wide-angle lenses, including exaggerated perspective and expanded depth-of-field, this lens can be used for a wide variety of scenes and subjects, such as sweeping landscapes and cramped rooms, adding more versatility to advanced medium-format digital SLR photography.

State-of-the-art optical design to optimize super-high-resolution images

Designed as the HD PENTAX DA-series model in the PENTAX 645 lens series, this lens's image circle is optimized for the image sensor of the PENTAX 645Z camera body. Its optics consists of 17 elements in 12 groups, including two high-performance aspherical elements and two ED (Extra-low Dispersion) elements, to enhance image resolution and brightness at edges, while minimizing various aberrations. Coupled with innovative lens coatings and an anti-reflective coating applied to the interior of the lens barrel, this lens is designed to bring out the best performance of medium-format digital SLR cameras.

HD Coating and Aero Bright Coating to optimize light transmittance and minimize reflection

This lens is treated with the high-grade, multi-layer HD Coating to optimize light transmittance and minimize reflection. This coating delivers sharp, clear images free of flare and ghost images, even under demanding lighting conditions such as backlight. By coupling this coating with the PENTAX-exclusive, high-grade Aero Bright Coating, this lens is designed to assure exceptionally high light transmittance and super-low refraction.

PENTAX-original, lens-installed SR mechanism

This lens incorporates the PENTAX-innovated SR (Shake Reduction) mechanism within the lens barrel. Since this mechanism effectively compensates for camera shake up to approximately 3.5 shutter steps, the user is assured of sharp, blur-free images even under conditions prone to camera shake, such as when handholding the camera at poorly lit locations without flash illumination, or when photographing sunset scenes. * In compliance with CIPA standard (f=45mm, using PENTAX 645Z/645D)

Dependable dustproof, weather-resistant construction

As the newest member of the AW (All Weather) series, this lens features a dependable dustproof, weather-resistant construction with 11 special seals to effectively prevent the intrusion of dust and water into the lens interior. By mounting this lens on the PENTAX 645Z camera body, the user is assured of a durable, reliable digital imaging system that performs superbly in demanding shooting settings ? even in rain or mist, or in locations prone to water splashes or spray.

Other features

SP (Super Protect) Coating applied to the front surface of the lens to effectively repel water and grease
Rounded diaphragm to produce a smooth, beautiful bokeh (out-of-focus rendition), while minimizing the streaking effect of point light sources
Smooth, quiet autofocus operation driven by a built-in DC motor
Quick-Shift Focus system for instant switching to manual-focus operation after the subject is captured in focus by the camera's AF system

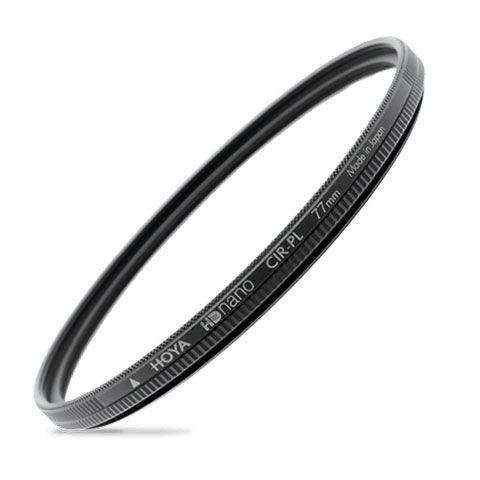

Various filters such as the C-PL (circular polarizing) filter can be attached to the front lens - a very unique feature for a wide-angle lens.

Lens	PENTAX 645AF2 bayonet
Angle Of View	89-63° (with 645D/645Z body)
Number Of Diaphragm Blades	9
Minimum Focusing Distance	1.32' (0.4m)
Maximum Magnification	0.21x
Weight	Approx. 51.9 oz/1470g (with hood Approx. 54.0 oz/1530g)
Lens Aperture Ring	Lens Cap F82mm
Diaphragm Control	Fully Automatic
Lens Construction	17 elements in 12 groups
Aperture	F4.5
Minimum Aperture	F32
Filter Diameter	82mm
Dimensions	Approx. 3.9 inch x 6.0 inch (99mm x 151.5mm)
Case	S120-210
Hood	PH-RBC82
Focal Length	28-45mm

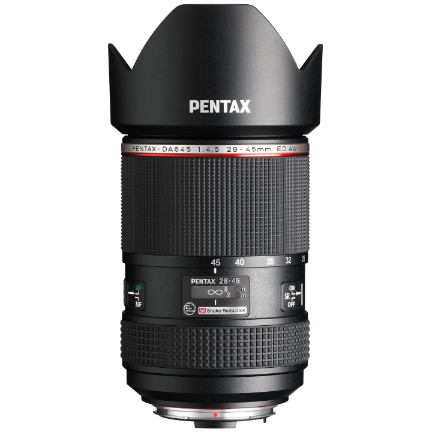

Pentax DA 645Z 28-45mm f/4.5 Lens

$7,849.00 ETA: 11/01/2025

Code: 26390

Find a Dealer |

At a glance

Ultra-wide-angle zoom lens
HD Coating and Aero Bright Coating
Weather resistant
Ideal for outdoors & landscape
Optimized for PENTAX medium-format DSLRs
