Pentax DA 40mm f/2.8 LTD HD Lens - Black

in stock  IN STOCK
in stock  IN STOCK
Find a Dealer |
Code: 21390
  • Standard
  • Ultra-thin, pancake design
  • Quick-shift focus system

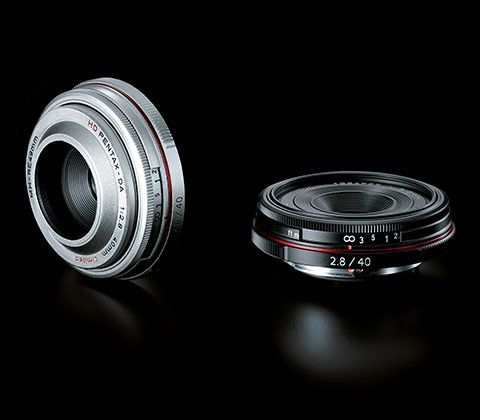

Super lightweight pancake lens with the latest HD coating and a round iris diaphragm featuring a weight of only 89g and length of only 15mm.

This is a super lightweight thin pancake lens with a weight of 89g and length of only 15mm. Its mobility and handling makes it ideal for snapshots. The angle of view is equivalent to the medium telephoto range, and it is capable of capturing the desired subject with a suitable sense of distance.



New HD coating

This lens uses a new-generation multicoating that reduces the reflection rate in the visible spectrum up to 50% more than conventional multicoating. This enables the reduction of flare and ghosting for the shooting of clear, high-contrast images even under backlighting and other adverse conditions.


New round iris diaphragm

A round iris diaphragm is used to enable rendering of soft round out-of-focus (bokeh) effect for illumination, shimmering on water surfaces, and other point light sources.


Design developed specifically for digital SLR cameras

The image circle was designed to match the size of the imaging element (23.5mm×15.7mm) for providing a dramatically more compact and lightweight design with high cost performance compared to 35mm format SLR cameras with replaceable lens at the same specs.


Impressive delineation performance

The design is based on the numerical evaluation of high resolutions and low aberration by various testing instruments and also incorporates advanced evaluation using actual images. The result is a certain "lens flavor" that carries on the concept of the PENTAX Limited series and that enables you to enjoy impressive rendering of your digital images.


Various types of shooting as a regular-use lens

This lens provides a focal length equivalent to 61mm in the 35mm film format when attached to a PENTAX digital SLR camera. The open F value of 2.8 allows shooting of snapshots and also portraits, indoors, landscapes, and a wide range of other subjects. This lens enables comfortable shooting with easy footwork and is ideal as a regular-use lens for people who normally walk around with their camera.



Angle Of View

39 degrees

Number Of Diaphragm Blades


Minimum Focusing Distance

15.7 inches (0.4m)

Maximum Magnification



3.2 oz. (90g)

Objective Cap

DA 40mm Lens Cap

Lens Aperture Ring


Diaphragm Control

Fully Automatic


Quick-shift focus, SP (Super Protect) coating

Lens Construction

5 elements in 4 groups



Minimum Aperture


Filter Diameter



2.5"x0.6" (63x15mm)


DA 40mm Lens Soft Case


MH-RC 49mm (included)

Tripod Adapter


Focal Length

40mm (equiv. 60mm)
