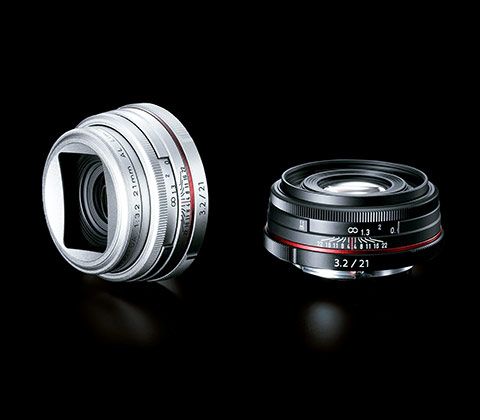

Ricoh Imaging | PENTAX-DA 21mm F3.2 LTD HD B

High-grade HD coating for exceptional image rendition

The HD PENTAX-DA Limited interchangeable lenses are designed for use with K-mount lens-interchangeable digital cameras. These lenses inherit the distinctive visual description and a premium appearance of the acclaimed PENTAX Limited Lens series, while adding the state-of-the-art HD coating and a round-shaped diaphragm, to deliver even higher digital imaging performance in combination with a K-mount camera body.


New HD coating

This lens uses a new-generation multicoating that reduces the reflection rate in the visible spectrum up to 50% more than conventional multicoating. This enables the reduction of flare and ghosting for the shooting of clear, high-contrast images even under backlighting and other adverse conditions.



Round-shaped diaphragm for beautiful out-of-focus rendition

All lenses feature a completely round-shaped diaphragm to optimize the performance of their distinctive optics. This diaphragm produces a natural, beautiful bokeh (out-of-focus) effect, while minimizing the streaking effect of point light sources.



Premium quality of the Limited Lens-series

While inheriting the design concept of the Limited Lens series, these lenses were designed by combining a series of mechanical and numerical evaluations with human assessment of test-shooting samples to assure the ultimate in image reproduction. Their optical design has been optimized for digital photography to deliver sharp, clear images with outstanding contrast, even at the maximum aperture. In addition, their lens barrel, hood and cap are all made of a high-grade aluminum material, hand-machined for perfect proportions and beautiful texture.



Other Features

  • Equivalent to 32 mm in 35mm film format
  • AL Aspherical element to reduce aberrations and provide crystal clear images
  • Fast manual focusing in AF mode with Quick Shift focus system
  • Super Protect coating of the front lens element for effective protection against dirt and finger-marks
  • Aluminium Alloy
  • Compact and lightweight



Lens

PENTAX KAF

Angle Of View

68° (w/ Pentax DSLR)

Number Of Diaphragm Blades

7

Minimum Focusing Distance

7.9’ (0.2m)

Maximum Magnification

0.17x

Weight

Without Hood: 4.2 oz (134g)

Objective Cap

Dedicated

Lens Aperture Ring

n/a

Diaphragm Control

Fully Automatic

Notes

Quick-shift Focus, SP (Super Protect) Coating

Lens Construction

8 elements in 5 groups

Aperture

f/3.2

Minimum Aperture

f/22

Filter Diameter

49mm (or 43mm mounted in hood)

Dimensions

2.5 x 1.0” (63.0 x 25mm)

Case

Soft Lens Case

Hood

MH-RBB43 (metal hood)

Tripod Adapter

n/a

Focal Length

21mm (equiv 32mm in 35mm format)

Whats in the box?

Lens Cap for DA 21mm Ltd (Black) OR Lens Cap for DA 15mm Ltd (Silver)
Lens Hood MH-RBB43 (Black) OR Lens Hood MH-RBB43 (Silver)
Rear Lens Cap B
Lens Soft Case for DA 21mm Ltd
