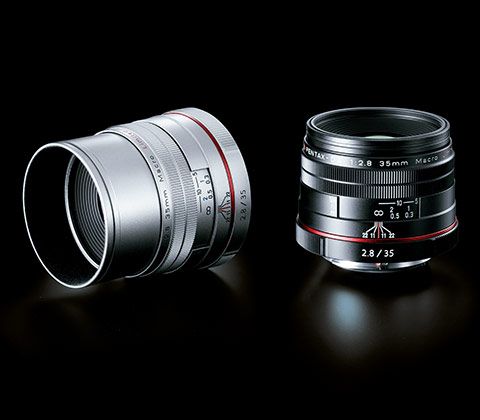

Ricoh Imaging | Pentax-DA 35mm F2.8 LTD HD Macro Lens (Black)

High-grade HD coating for exceptional image rendition

The HD PENTAX-DA Limited interchangeable lenses are designed for use with K-mount lens-interchangeable digital cameras. These lenses inherit the distinctive visual description and a premium appearance of the acclaimed PENTAX Limited Lens series, while adding the state-of-the-art HD coating and a round-shaped diaphragm, to deliver even higher digital imaging performance in combination with a K-mount camera body.

High-grade HD coating for exceptional image rendition

Developed based on the Limited Lens series — renowned for the meticulous finish in every detail from the outstanding image rendition to the high-quality, hand-machined aluminum body — these new lenses assure even better optical performance than the original Limited Lens-series models. They are treated with the HD coating, which assures much higher light transmittance than conventional multi-layer coatings to deliver sharp, clear images free of flare and ghost images, even under such demanding conditions as backlight. They also feature a completely round-shaped diaphragm to produce a natural, beautiful bokeh (out-of-focus) effect in the foreground and background.


Round-shaped diaphragm for beautiful out-of-focus rendition

All lenses feature a completely round-shaped diaphragm to optimize the performance of their distinctive optics. This diaphragm produces a natural, beautiful bokeh (out-of-focus) effect, while minimizing the streaking effect of point light sources.


Premium quality of the Limited Lens-series

While inheriting the design concept of the Limited Lens series, these lenses were designed by combining a series of mechanical and numerical evaluations with human assessment of test-shooting samples to assure the ultimate in image reproduction. Their optical design has been optimized for digital photography to deliver sharp, clear images with outstanding contrast, even at the maximum aperture. In addition, their lens barrel, hood and cap are all made of a high-grade aluminum material, hand-machined for perfect proportions and beautiful texture.


Other Features

  • Equivalent to 53.5 mm in 35mm film format
  • Fast manual focusing in AF mode with Quick Shift focus system
  • Super Protect coating of the front lens element for effective protection against dirt and finger-marks
  • Aluminium Alloy


Angle Of View

44° (w/ Pentax DSLR)

Number Of Diaphragm Blades


Minimum Focusing Distance

0.456’ (0.139m)

Maximum Magnification



Without hood 7.5 oz (214g)

Objective Cap

Dedicated slip-on type

Lens Aperture Ring


Diaphragm Control

Fully Automatic


Quick-shift Focus, SP (Super Protect) Coating

Lens Construction

9 elements in 8 groups



Minimum Aperture


Filter Diameter



2.5 x 1.8” (63.0 x 46.5mm)


Soft Lens Case


Built-in, pullout type

Tripod Adapter


Focal Length

35mm (equiv 53.5mm)

Whats in the box?

Lens Cap for DA 35mm Macro Ltd (Black) OR Lens Cap for DA 35mm Macro Ltd (Silver)
Rear Lens Cap B
Lens Soft Case for DA 35mm Macro Ltd
