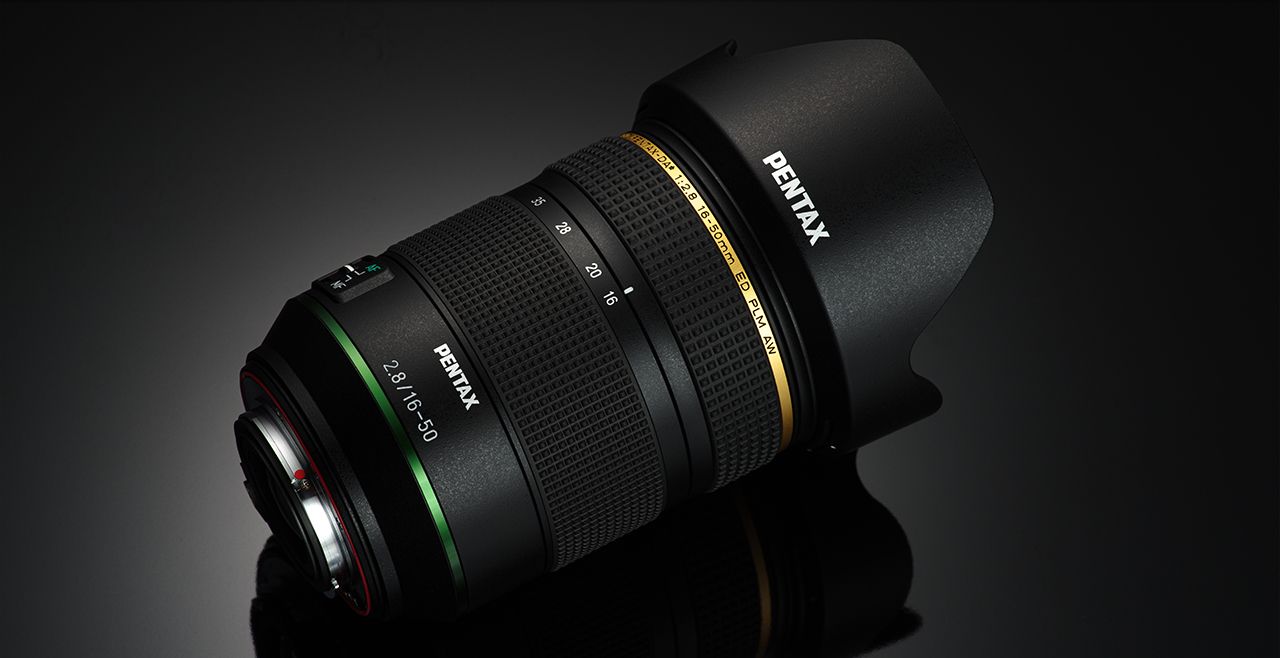

Pentax HD DA 16-50mm f/2.8 ED PLM AW Lens

$2,079.00 ETA: 02/08/2024

K-Mount Lens / APS-C Format
24.5-76.5mm (35mm Equivalent)
Aperture Range: f/2.8 to f/22
Extra-Low Dispersion Glass
PLM Advanced Pulse Autofocus Motor
HD Multicoating
SP Super Protect Resistance Coating
Minimum Focus Distance: 11.8"
Dustproof, Weather-Resistant Design
Rounded 9-Blade Diaphragm

Assuring Creative Diversity In All Types Of Photography

Top-rated optical performance and remarkable reliability to suppport your distinctive photographic style

The HD PENTAX-DA★16-50mmF2.8ED PLM AW Standard Zoom Lens is one of the PENTAX's top-of-the-line lens series, combining exceptional imaging power and image rendition with outstanding operability and environment-resistant performance

Pentax HD PENTAX-DA★16-50mmF2.8ED PLM AW.jpg

Focal length (Equivalent to 35mm format)	16-50mm Equivalent to 24.5-76.5mm in 35mm format (when attached to PENTAX APS-C size DSLR cameras)
Maximum Aperture	F2.8
Minimum Aperture	F22
Lens construction	16 elements in 10 groups
Angle of View (Diagonal)	83-31.5° (when attached to PENTAX APS-C size DSLR cameras)
Mount	KAF4
Minimum Focusing Distance	0.3m (0.98ft.)
Maximum Magnification	0.24x
Filter Diameter	77mm
Diaphragm Control	Electromagnetic diaphragm Fully automatic
Number of Diaphragm Blades	9 Rounded diaphragm （16mm:F2.8-5.6 50mm:F2.8-8）
Aperture Ring	N/A
Tripod Mount	N/A
Lens Hood	PH-RBN77 (included)
Lens Cap	O-LC77 (included)
Lens Case	S120-150 (included)
Maximum Diameter x Length	approx. 84mm x 117mm (approx. 3.3in. x 4.6in.)
Weight	approx. 712g / with hood approx. 750g (approx. 25.1oz. / with hood approx. 26.5oz.)
Temperature	-10°C～40°C (14°F～104°F)
Humidity	85% or less (no condensation)
Included Accessories	Lens Hood PH-RBN77, Lens Cap O-LC77, Lens Mount Cap K, Lens Case S120-150
Others	HD Coating SP (Super Protect) Coating AW (All Weather Resistant) Quick-shift Focus System (QFS/M) Pulse Motor

Code: 28030

Related Categories Related Lenses by Sensor Size Related Lenses by Type

Code: 28030

At a glance

Related Categories Related Lenses by Sensor Size Related Lenses by Type

A New-Generation Star-Series Lens, Perfected In Pursuit Of The Ultimate In Image Quality This standard zoom lens is a member of the new-generation Star (★) series, designed to provide the greatly improved resolving power that will be demanded by tomorrow’s super-high-performance cameras. It delivers high-contrast, high-resolution images across the image field, even at open aperture, while producing a smooth, natural bokeh (defocus) effect to assure true-to-life image renditions. The incorporation of a high-performance PLM (Pulse Motor) provides much improved autofocus performance in both speed and precision. Despite the large maximum aperture of F2.8, this standard zoom lens assures outstanding maneuverability and portability — the most distinguished features of lenses exclusively designed for use with APS-C-format digital cameras — to accommodate all types of applications, from scenic and nature photography to snap-shooting and portraiture.

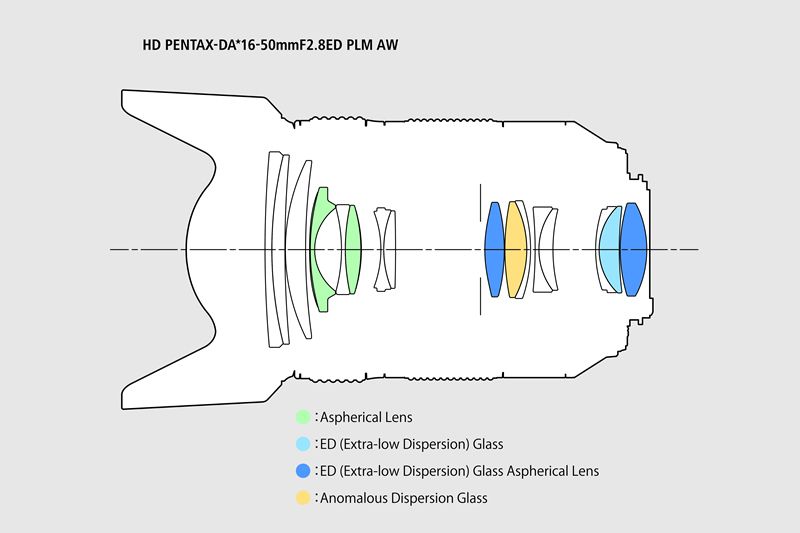

	Exceptional Resolving Power Assured By Uncompromising Optical Design The 10-group, 16-element optical system (including four aspherical optical elements) assures superb resolving power and delivers super-clear, high-contrast images from the middle of the image field to the edges. By incorporating one ED (Extra-low Dispersion) glass optical element, one anomalous dispersion glass optical element and two ED (Extra-low Dispersion) aspherical glass optical elements, it reduces chromatic aberration to a minimum over the entire zoom range. The high-grade, multi-layer HD Coating,* which reduces the average reflectance in the visible ray spectrum to less than 50% that of conventional multi-layer coatings, effectively minimizes flare and ghost images even in demanding lighting conditions such as backlighting. * HD stands for High Definition.

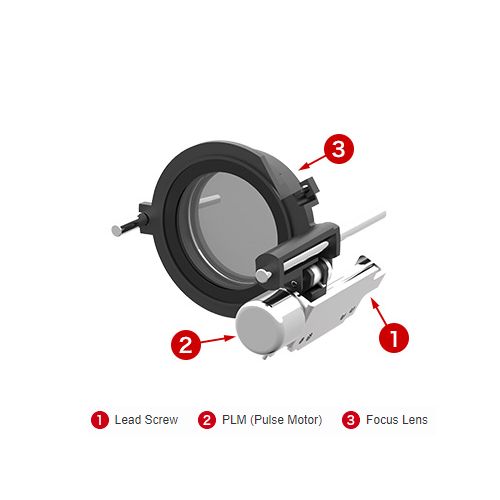

High-Performance PLM For Quiet, High-Speed Autofocus Operation The focus-lens elements are directly driven by a PLM (Pulse Motor), providing much-improved focusing speed (approx. 2.2 times faster in the wide-angle range, or approx. 1.5 times faster in the telephoto range, compared to the smc PENTAX-DA^★ 16-50mm F2.8ED AL[IF] SDM),* while effectively minimizing noise for quieter operation. Manual-focus operation of the power-assisted focus mechanism has also been upgraded to optimize the precision and response of detecting the focus ring. As the result, the focus-lens elements shift more efficiently and flawlessly in synchronization with focus-ring operation. * When using AF.S mode for viewfinder shooting of still images, at a distance of 0.3 meters to infinity.

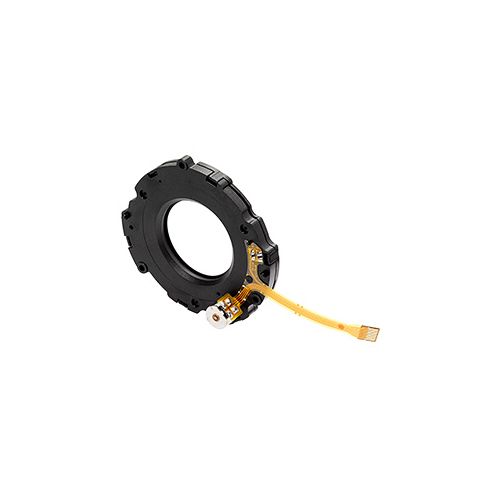

	Electromagnetic Diaphragm Mechanism For Flawless, High-Precision Exposure Control During Video Recording When mounted on a compatible KAF4-mount camera body, this zoom lens assures flawless, high-precision exposure control, not only in still-image shooting, but also in video recording. Even when there are considerable differences in brightness during video shooting, its electromagnetic diaphragm control mechanism allows the user to capture video clips using automatic exposure control. In combination with some compatible cameras,** the PLM (Pulse Motor) assures smooth focus tracking operation and flawless exposure control, while considerably reducing annoying noise generated by focus and diaphragm control operations during video recording. This means smooth, worry-free video shooting in locations prone to considerable brightness changes — such as a stage with rapidly changing lighting conditions, or a forest with filtering sunrays — or with active, fast-moving subjects such as athletes or animals.

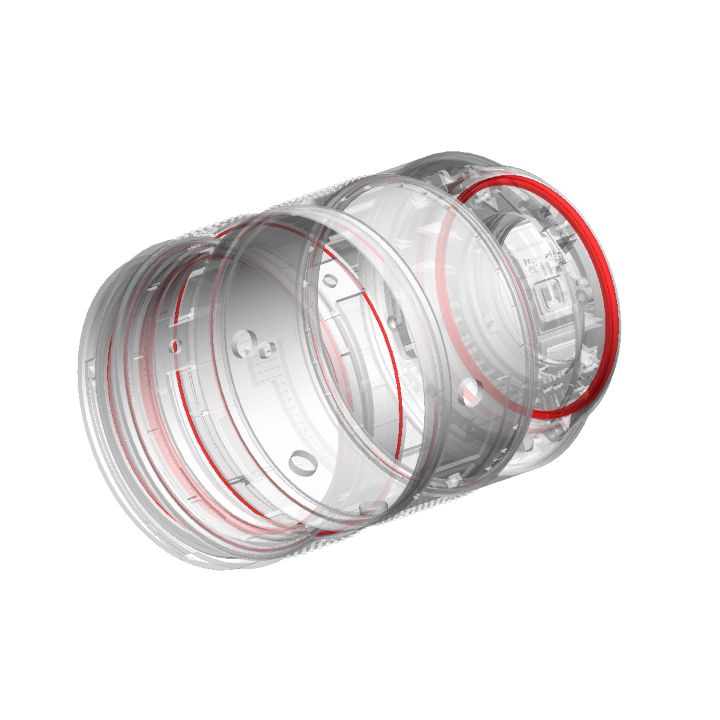

Dustproof, Weather-Resistant Construction This lens features the “All Weather (AW)” construction to prevent the intrusion of dust and water into the lens interior. Pair it with a PENTAX dustproof, weather-resistant digital SLR camera body for creative shooting in rain or mist, or other locations prone to water splashes.

Assuring Creative Diversity In All Types Of Photography

Top-rated optical performance and remarkable reliability to suppport your distinctive photographic style

A New-Generation Star-Series Lens, Perfected In Pursuit Of The Ultimate In Image Quality

Exceptional Resolving Power Assured By Uncompromising Optical Design

High-Performance PLM For Quiet, High-Speed Autofocus Operation

Electromagnetic Diaphragm Mechanism For Flawless, High-Precision Exposure Control During Video Recording

Dustproof, Weather-Resistant Construction
