Pentax HD DA 16-50mm F2.8ED PLM AW Lens

$2,079.00
no stock  NO STOCK
no stock  NO STOCK
Find a Dealer |
Code: 28030 MFT# S0028030
  • K-Mount Lens / APS-C Format
  • 24.5-76.5mm (35mm Equivalent)
  • Aperture Range: f/2.8 to f/22
  • Extra-Low Dispersion Glass
  • PLM Advanced Pulse Autofocus Motor
  • HD Multicoating
  • SP Super Protect Resistance Coating
  • Minimum Focus Distance: 11.8"
  • Dustproof, Weather-Resistant Design
  • Rounded 9-Blade Diaphragm

Assuring Creative Diversity In All Types Of Photography

Top-rated optical performance and remarkable reliability to suppport your distinctive photographic style

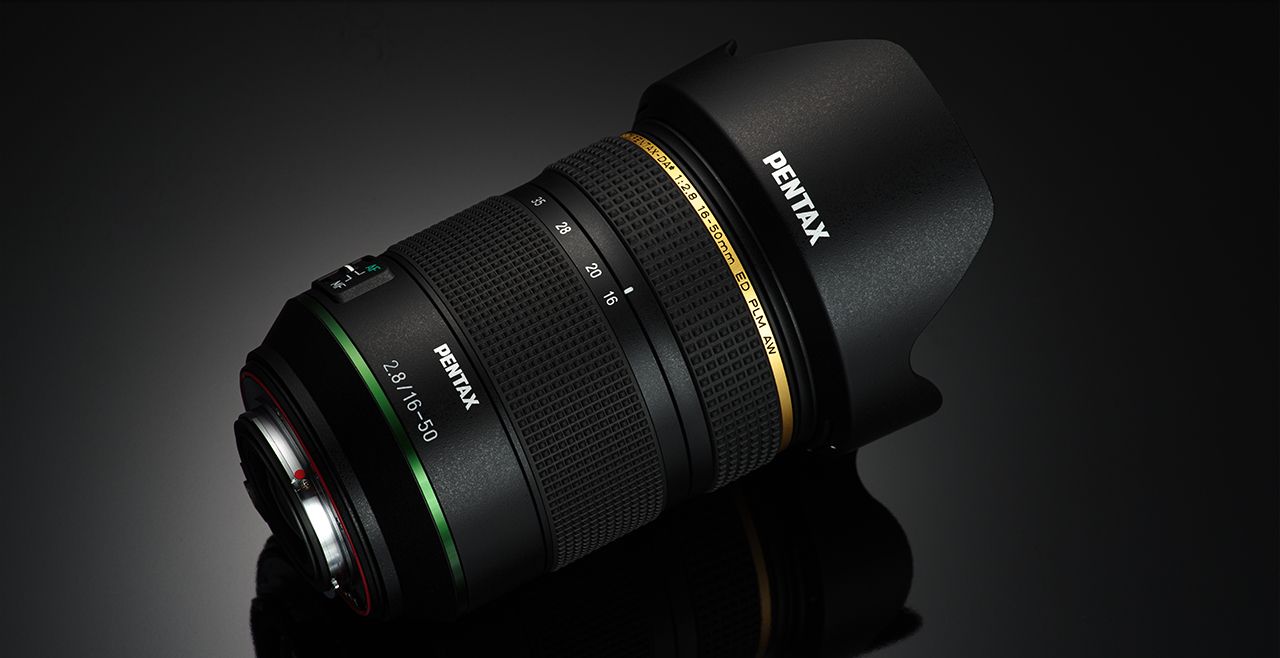

The HD PENTAX-DA★16-50mmF2.8ED PLM AW Standard Zoom Lens is one of the PENTAX's top-of-the-line lens series, combining exceptional imaging power and image rendition with outstanding operability and environment-resistant performance

Pentax HD PENTAX-DA★16-50mmF2.8ED PLM AW.jpg

A New-Generation Star-Series Lens, Perfected In Pursuit Of The Ultimate In Image Quality

This standard zoom lens is a member of the new-generation Star (★) series, designed to provide the greatly improved resolving power that will be demanded by tomorrow’s super-high-performance cameras. It delivers high-contrast, high-resolution images across the image field, even at open aperture, while producing a smooth, natural bokeh (defocus) effect to assure true-to-life image renditions. The incorporation of a high-performance PLM (Pulse Motor) provides much improved autofocus performance in both speed and precision. Despite the large maximum aperture of F2.8, this standard zoom lens assures outstanding maneuverability and portability — the most distinguished features of lenses exclusively designed for use with APS-C-format digital cameras — to accommodate all types of applications, from scenic and nature photography to snap-shooting and portraiture.

smc PENTAX-DA★ 16-50mm F2.8 ED AL[IF] SDM

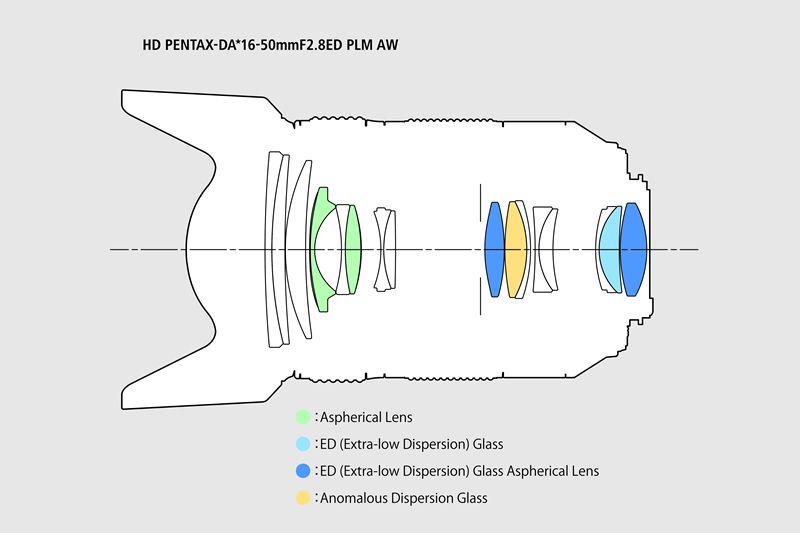

Lens Construction

Exceptional Resolving Power Assured By Uncompromising Optical Design

The 10-group, 16-element optical system (including four aspherical optical elements) assures superb resolving power and delivers super-clear, high-contrast images from the middle of the image field to the edges. By incorporating one ED (Extra-low Dispersion) glass optical element, one anomalous dispersion glass optical element and two ED (Extra-low Dispersion) aspherical glass optical elements, it reduces chromatic aberration to a minimum over the entire zoom range. The high-grade, multi-layer HD Coating,* which reduces the average reflectance in the visible ray spectrum to less than 50% that of conventional multi-layer coatings, effectively minimizes flare and ghost images even in demanding lighting conditions such as backlighting.
* HD stands for High Definition.

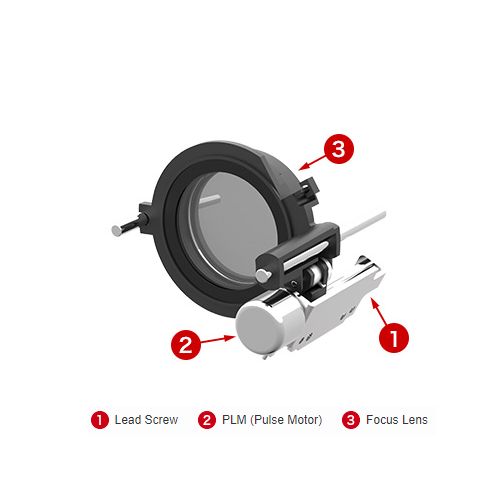

High-Performance PLM For Quiet, High-Speed Autofocus Operation

The focus-lens elements are directly driven by a PLM (Pulse Motor), providing much-improved focusing speed (approx. 2.2 times faster in the wide-angle range, or approx. 1.5 times faster in the telephoto range, compared to the smc PENTAX-DA 16-50mm F2.8ED AL[IF] SDM),* while effectively minimizing noise for quieter operation. Manual-focus operation of the power-assisted focus mechanism has also been upgraded to optimize the precision and response of detecting the focus ring. As the result, the focus-lens elements shift more efficiently and flawlessly in synchronization with focus-ring operation.

* When using AF.S mode for viewfinder shooting of still images, at a distance of 0.3 meters to infinity.

PENTAX-DA★ 16-50mm F2.8 ED AL[IF] SDM Lens Construction

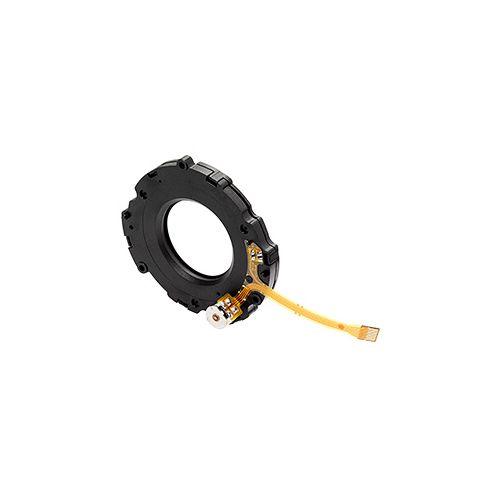

PENTAX-DA★ 16-50mm F2.8 ED AL[IF] SDM Electromagnetic Diaphragm

Electromagnetic Diaphragm Mechanism For Flawless, High-Precision Exposure Control During Video Recording

When mounted on a compatible KAF4-mount camera body, this zoom lens assures flawless, high-precision exposure control, not only in still-image shooting, but also in video recording. Even when there are considerable differences in brightness during video shooting, its electromagnetic diaphragm control mechanism allows the user to capture video clips using automatic exposure control. In combination with some compatible cameras,** the PLM (Pulse Motor) assures smooth focus tracking operation and flawless exposure control, while considerably reducing annoying noise generated by focus and diaphragm control operations during video recording. This means smooth, worry-free video shooting in locations prone to considerable brightness changes — such as a stage with rapidly changing lighting conditions, or a forest with filtering sunrays — or with active, fast-moving subjects such as athletes or animals.

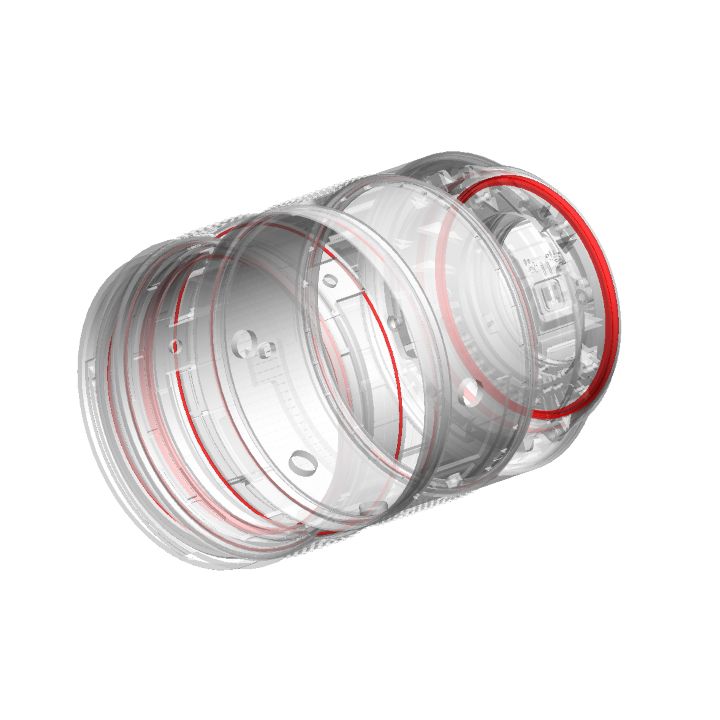

Dustproof, Weather-Resistant Construction

This lens features the “All Weather (AW)” construction to prevent the intrusion of dust and water into the lens interior. Pair it with a PENTAX dustproof, weather-resistant digital SLR camera body for creative shooting in rain or mist, or other locations prone to water splashes.

PENTAX-DA★ 16-50mm F2.8 ED AL[IF] SDM Weather-resistant Construction
Focal length (Equivalent to 35mm format) 16-50mm
Equivalent to 24.5-76.5mm in 35mm format (when attached to PENTAX APS-C size DSLR cameras)
Maximum Aperture F2.8
Minimum Aperture F22
Lens construction 16 elements in 10 groups
Angle of View (Diagonal) 83-31.5°
(when attached to PENTAX APS-C size DSLR cameras)
Mount KAF4
Minimum Focusing Distance 0.3m (0.98ft.)
Maximum Magnification 0.24x
Filter Diameter 77mm
Diaphragm Control Electromagnetic diaphragm
Fully automatic
Number of Diaphragm Blades 9
Rounded diaphragm (16mm:F2.8-5.6 50mm:F2.8-8)
Aperture Ring N/A
Tripod Mount N/A
Lens Hood PH-RBN77 (included)
Lens Cap O-LC77 (included)
Lens Case S120-150 (included)
Maximum Diameter x Length approx. 84mm x 117mm (approx. 3.3in. x 4.6in.)
Weight approx. 712g / with hood approx. 750g
(approx. 25.1oz. / with hood approx. 26.5oz.)
Temperature -10°C~40°C (14°F~104°F)
Humidity 85% or less (no condensation)
Included Accessories Lens Hood PH-RBN77, Lens Cap O-LC77, Lens Mount Cap K, Lens Case S120-150
Others HD Coating
SP (Super Protect) Coating
AW (All Weather Resistant)
Quick-shift Focus System (QFS/M)
Pulse Motor
