The HD PENTAX DA 16-85mm f/3.5-5.6 ED DC WR is optimized to provide premium performance for use on PENTAX K-mount digital SLR cameras. Catering to the needs of the photographer, this lens provides a high zoom ratio of approximately 5.3 times to cover focal lengths from 16mm ultra-wide-angle to 85mm telephoto for lengths equivalent to 24.5mm to 130mm (in the 35mm format). This versatile zoom lens comes in handy for a wide variety of scenes and subjects, including sweeping landscapes and cramped rooms. Equipped with the PENTAX-exclusive, HD coating, this lens is sure to offer sharp, clear images even under challenging light conditions.
This zoom lens offers a zoom ratio of approximately 5.3 times to cover the ultra-wide-angle to telephoto ranges (for focal lengths equivalent to 24.5mm to 130mm in the 35mm format). In addition to the most commonly used focal lengths, it provides ultra-wide-angle coverage to produce distinctive, creative visual expressions, such as an exaggerated perspective or an extra-wide depth of field. The versatile zoom lens comes in handy for a wide variety of scenes and subjects, including sweeping landscapes and cramped rooms.
Exceptional imaging power to optimize the performance of super-high-resolution cameras
Consisting of 16 optical elements in 12 groups, the lens features one ED (Extra-low Dispersion) glass element and three high-grade aspherical elements to minimize spherical and chromatic aberrations and suppress color bleeding. In order to accommodate a super-high-pixel image sensor installed in an SLR camera body, its MTF (Modulation Transfer Function) curve is programmed to be higher than those of conventional models in the same class to deliver high-resolution, fine-detailed images.
HD Coating to improve image description
This lens is treated with the high-grade, multi-layer HD Coating. Compared with conventional multi-layer coatings, this PENTAX-original coating assures higher light transmittance and less reflection to deliver bright, high-contrast images free of flare and ghost images, even under demanding lighting conditions such as backlight.

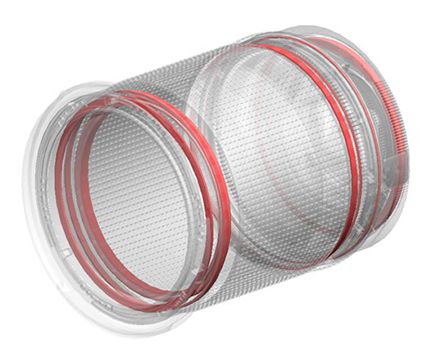

The lens features a dependable weather-resistant construction with eight special seals to effectively prevent the intrusion of water into the lens interior. By pairing it with a weather-resistant digital SLR camera body, it assures a durable, reliable digital imaging system that performs superbly in demanding shooting settings — even in rain or mist, or in locations prone to water splashes or spray.
・SP (Super Protect) Coating applied to the front surface of the lens to effectively repel water and grease ・Rounded diaphragm to produce a smooth, beautiful bokeh (defocus) effect, while minimizing the streaking effect of point light sources ・Smooth, quiet autofocus operation, driven by the built-in DC motor
PENTAX KAF3 mount
16-85mm (equiv. 24.5-130mm)
Angle of View
16 elements in 12 groups
Number of aperture blades
7 (rounded 16mm f/3.5-4.5, 85mm f/5.6-8)
Min. Aperture (f)
Min. Focusing Distance
Diameter & Length (mm)
78mm x 94mm
488g w/o hood 517g w/hood
HD coating Super Protect (SP) coating Weather Resistant Quick-shift Focus System Filter Window
